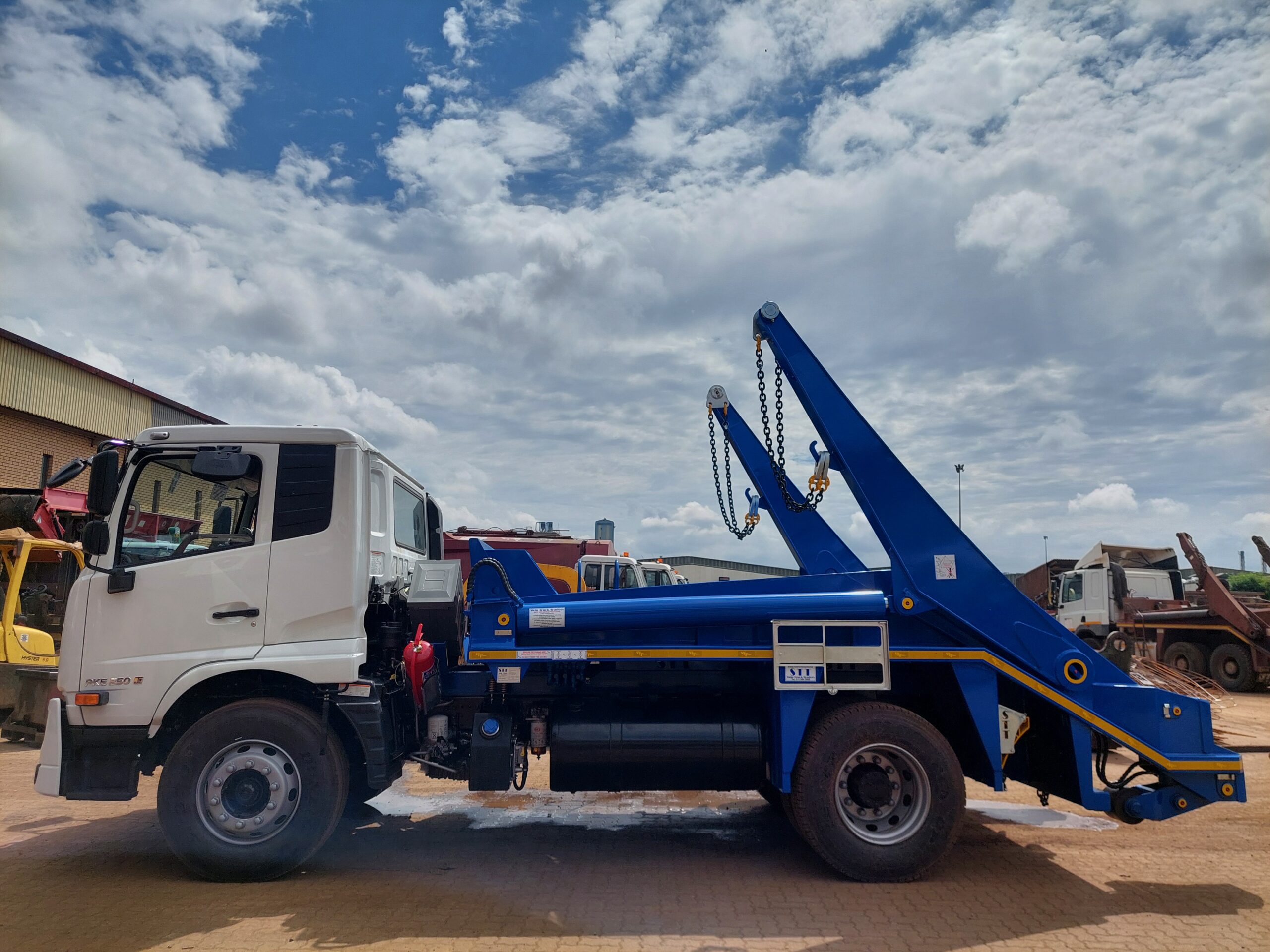

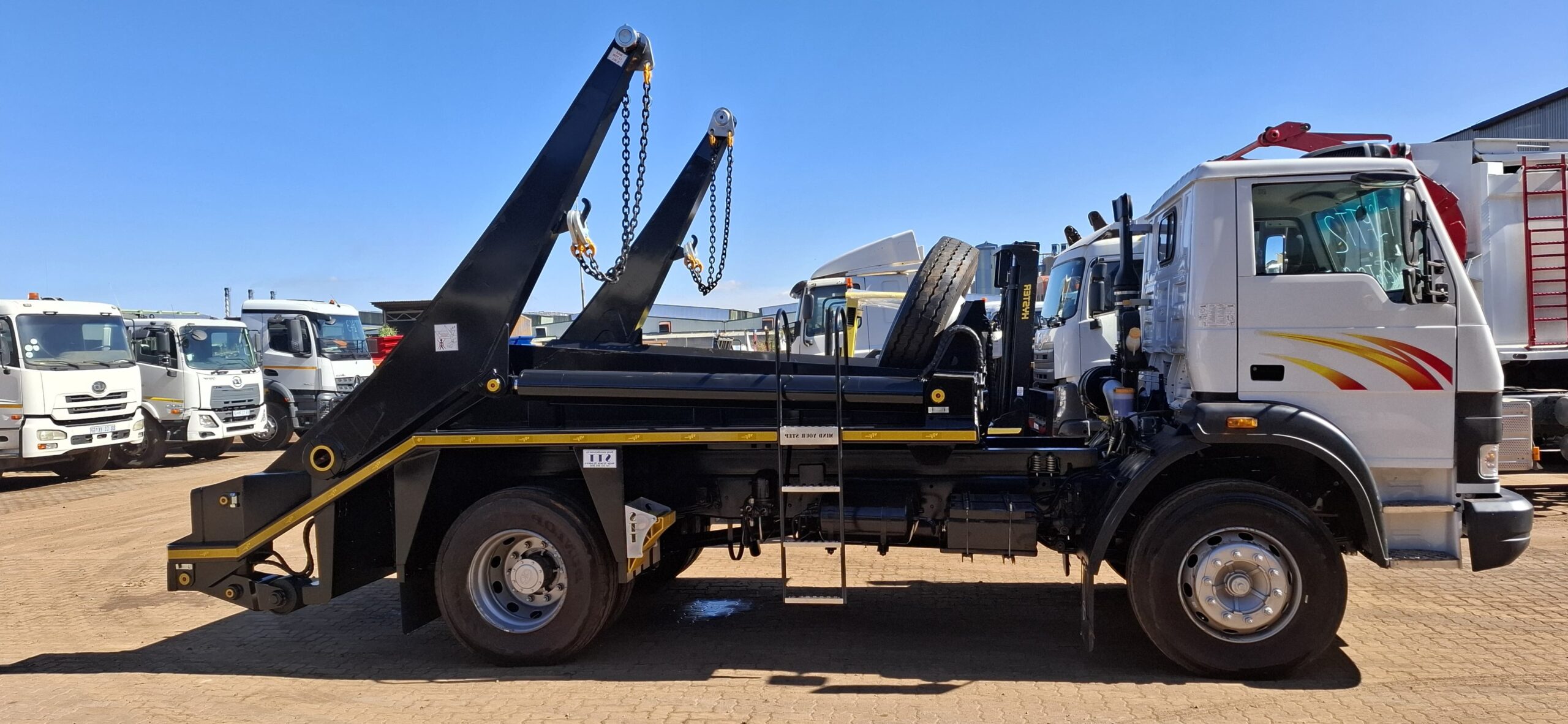

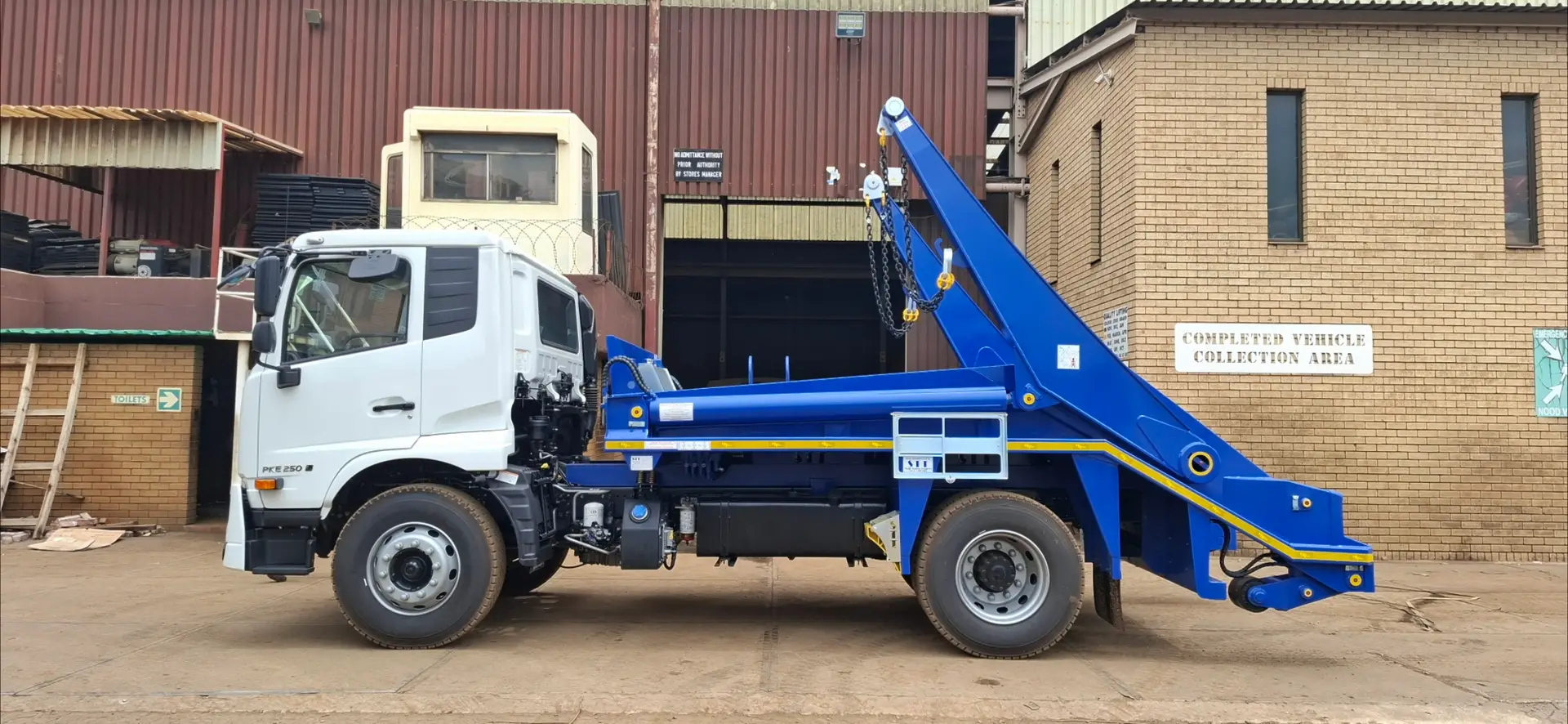

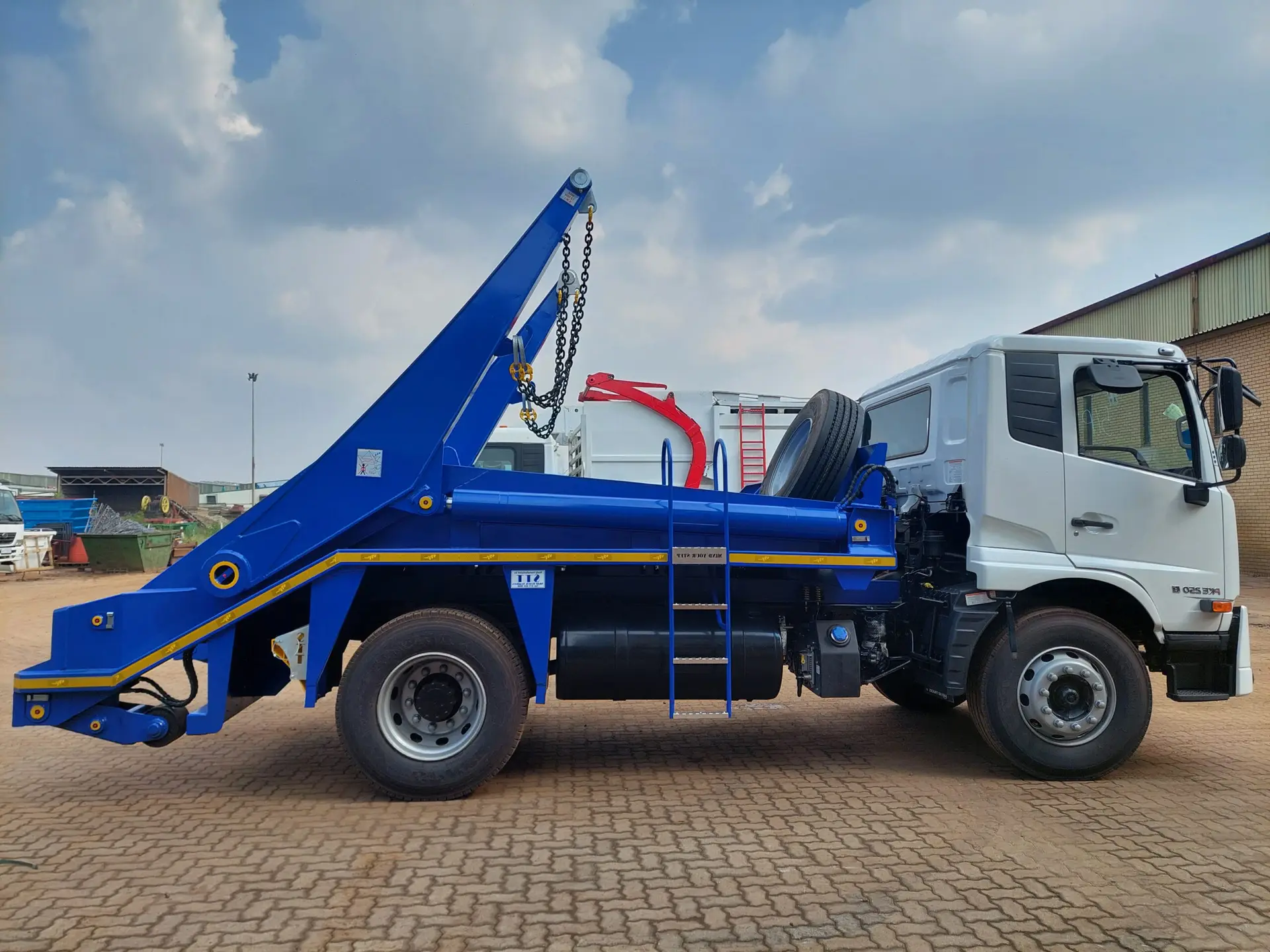

This body is primarily used for the transportation of skip bins for general waste including the collection of garden rubble and medium duty scrap metal. However it is very versatile in being able to transport various designs & sizes of bins including portable water tanks as well as small vacuum tanks. These units are completely manufactured locally so spare parts are readily available on request.
| OPTION | 13 Ton Skip Unit |
| Height From Ground | 3550mm |
| Width | 2600mm |
| Required CA Dimension | 2900mm |
| Tare Weight | 3500kg |
| OPTION | 13 Ton Skip Unit |
| Side Beams | 4mm Supraform SS550 |
| Deck | 4.5mm Mild Steel |
| Floor Cross Members | 4mm Supraform SS550 |
| Outriggers | 4mm Supraform SS550 |
| Arm Configuration | Standard or Extending |
| OPTION | 13 Ton Skip Unit |
| Hydraulic Pump Rating | 25 MPa |
| PTO Required Torque | 208 Nm |
| Required Flow Rate | 60 – 80 L/min |
| Pump RPM | 1200 |
| Main Relief Pressure | 19 MPa |
| Hydraulic Tank Capacity | 70L |
