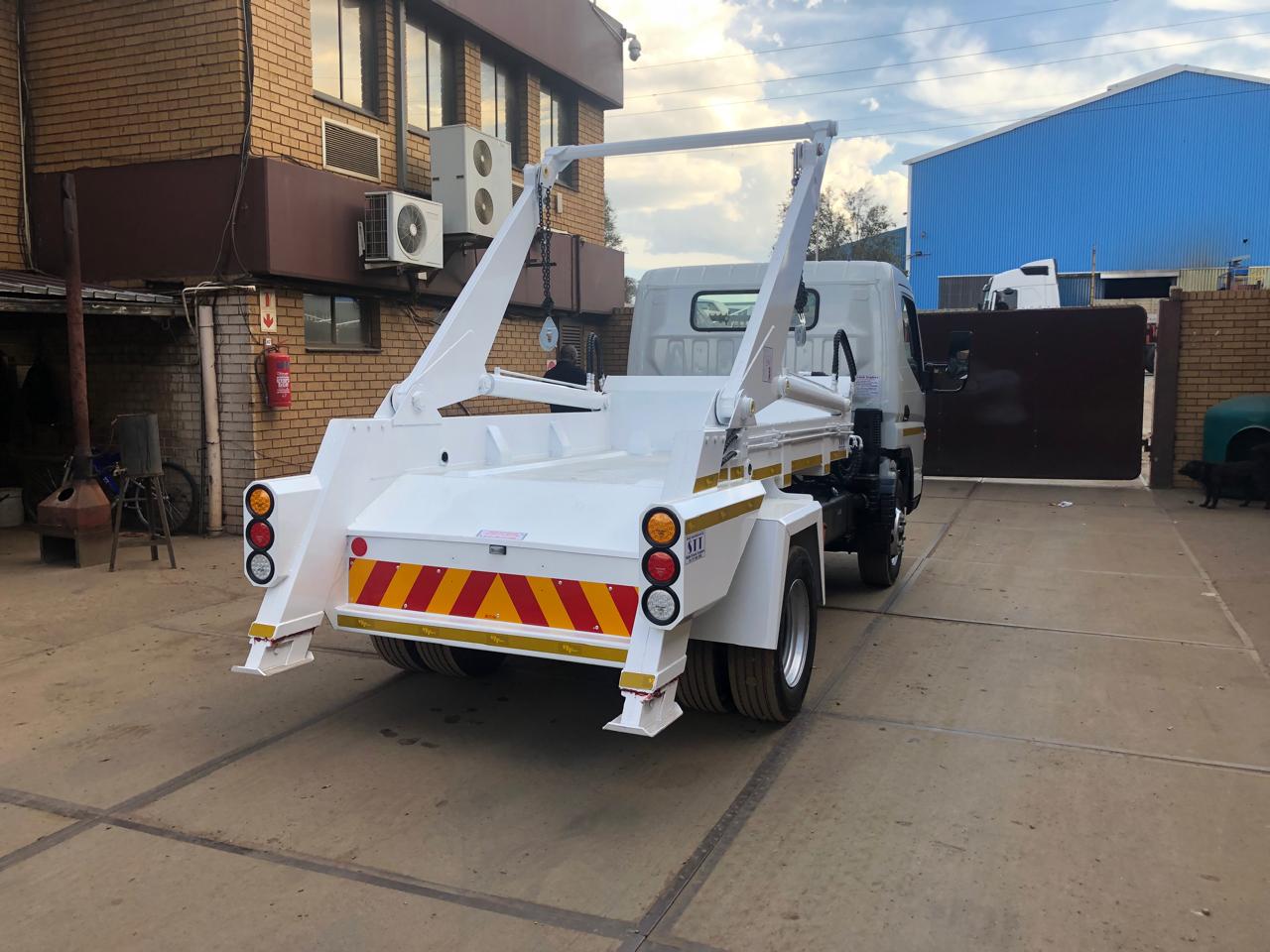

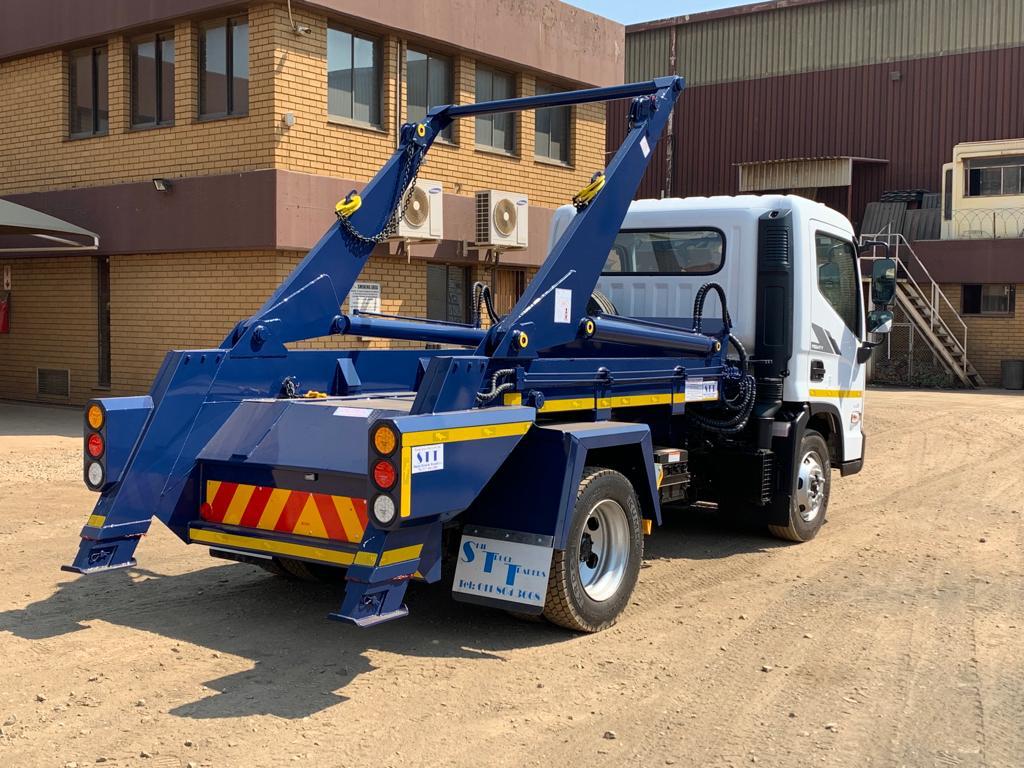

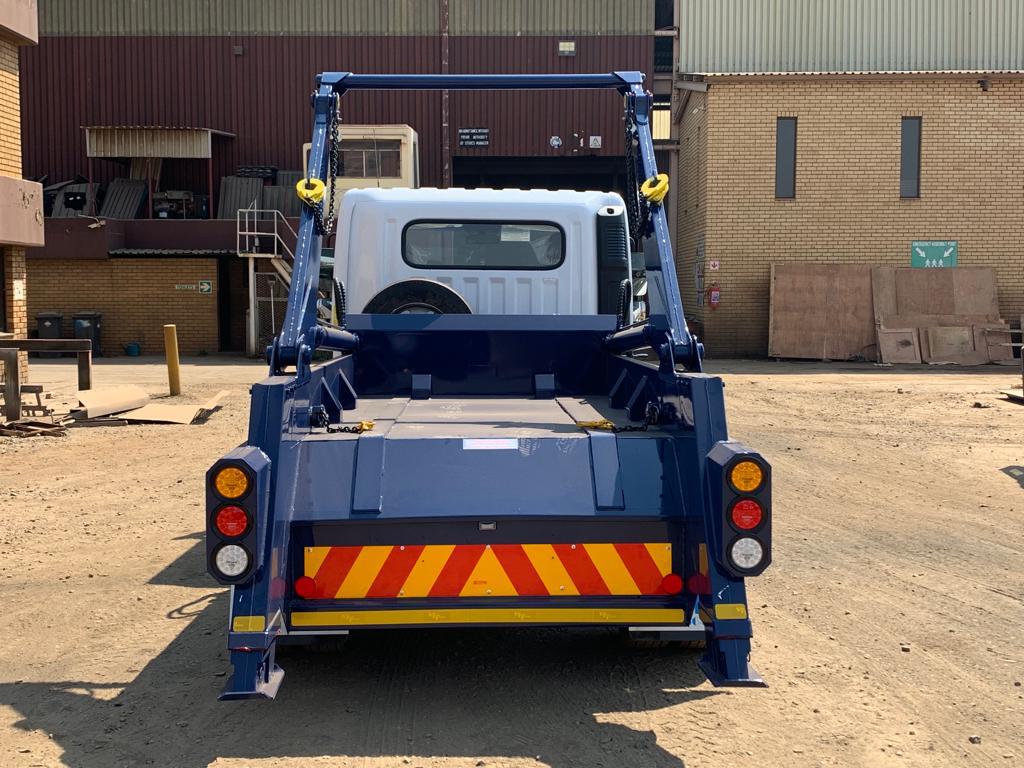

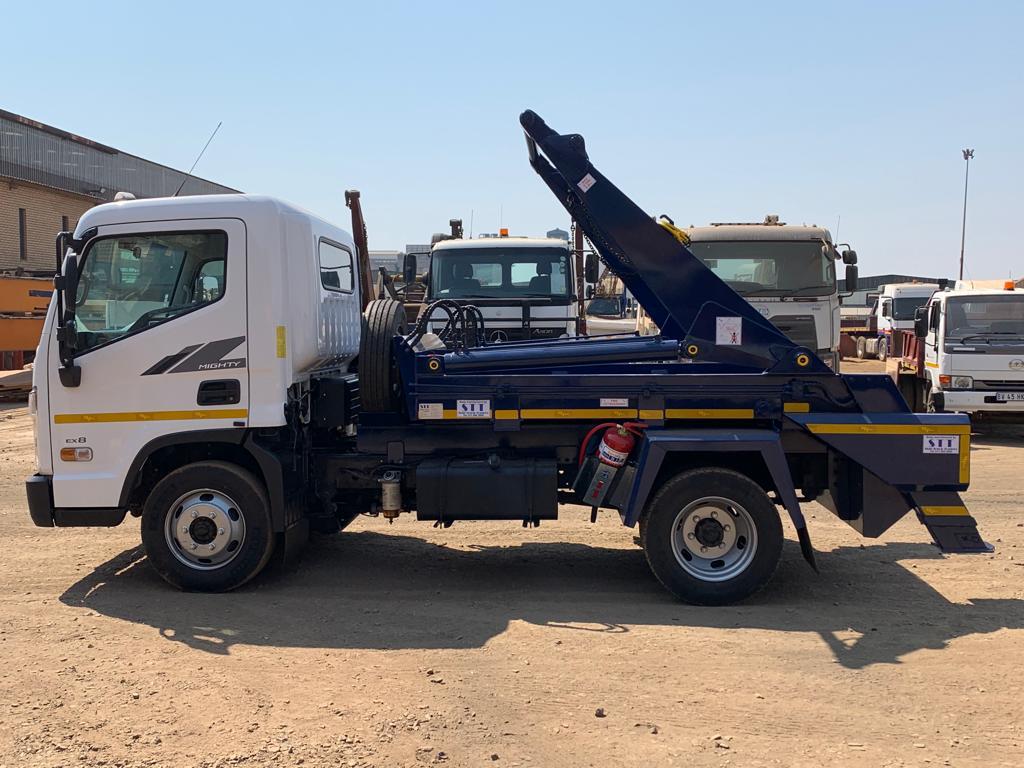

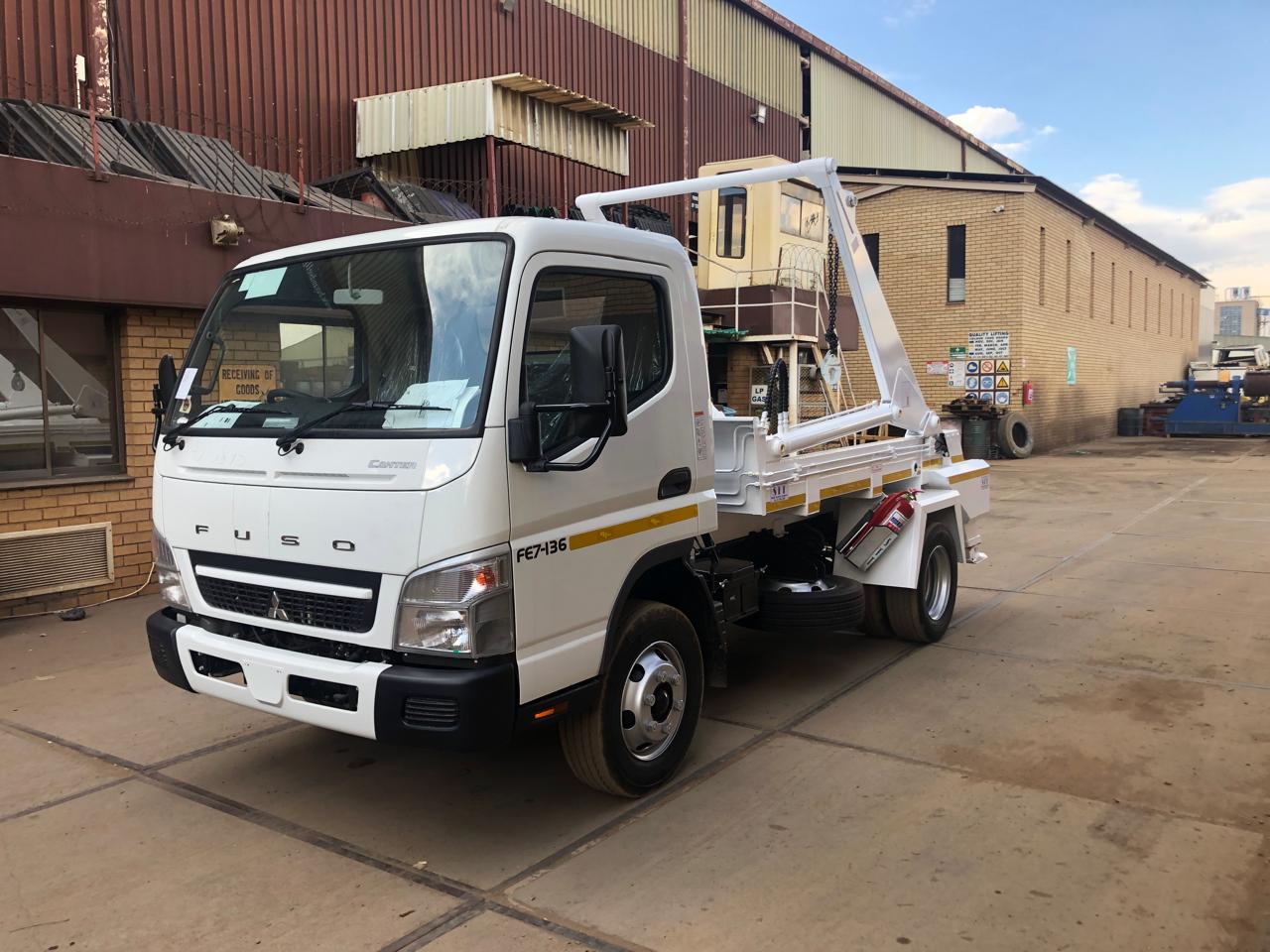

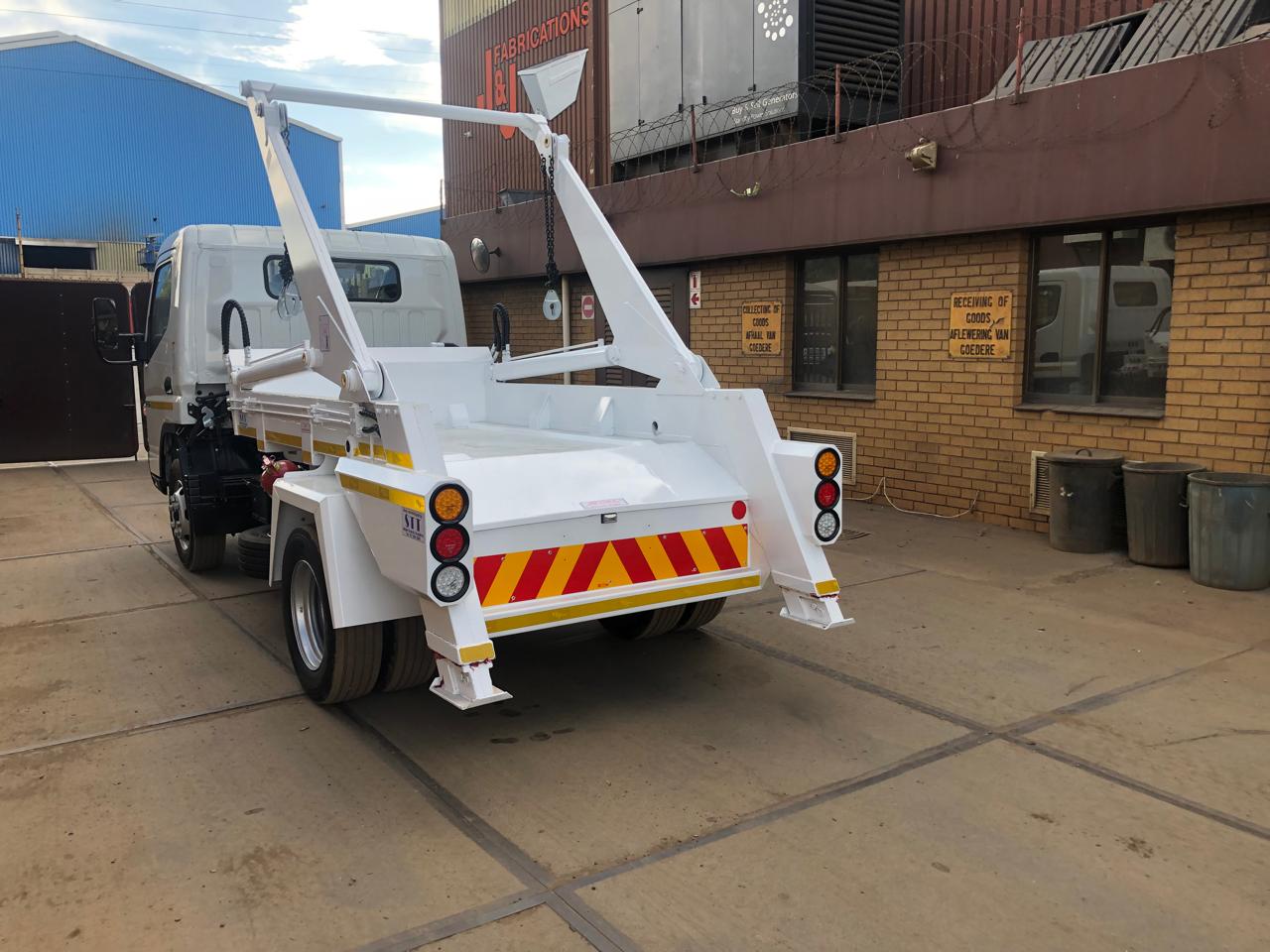

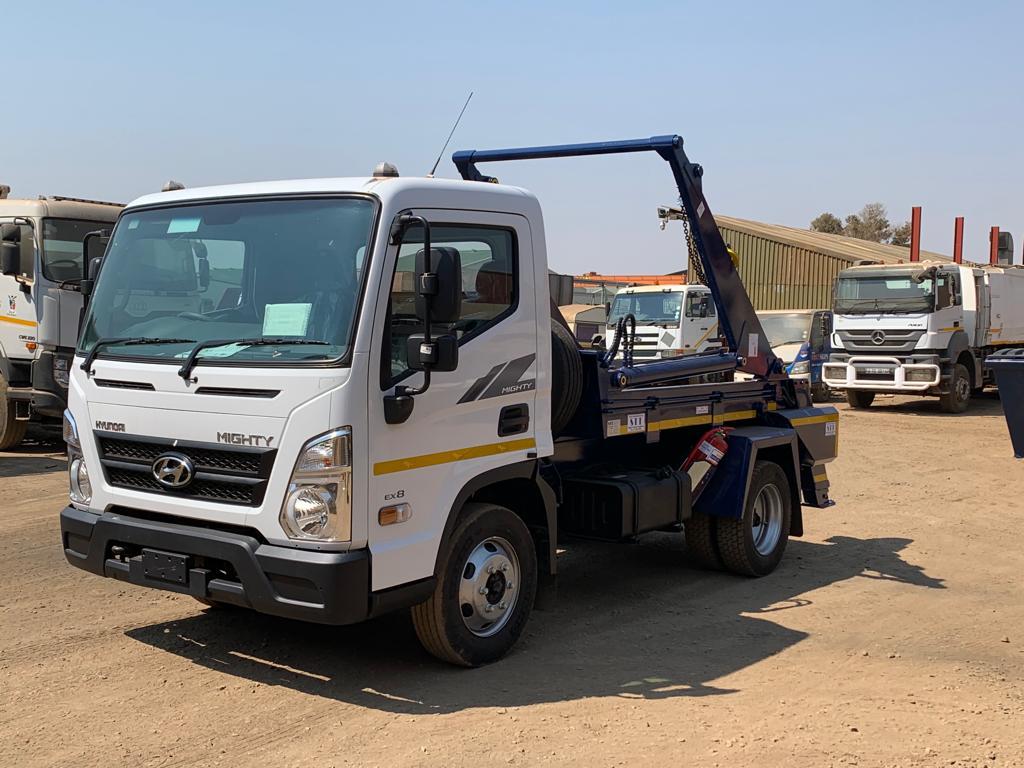

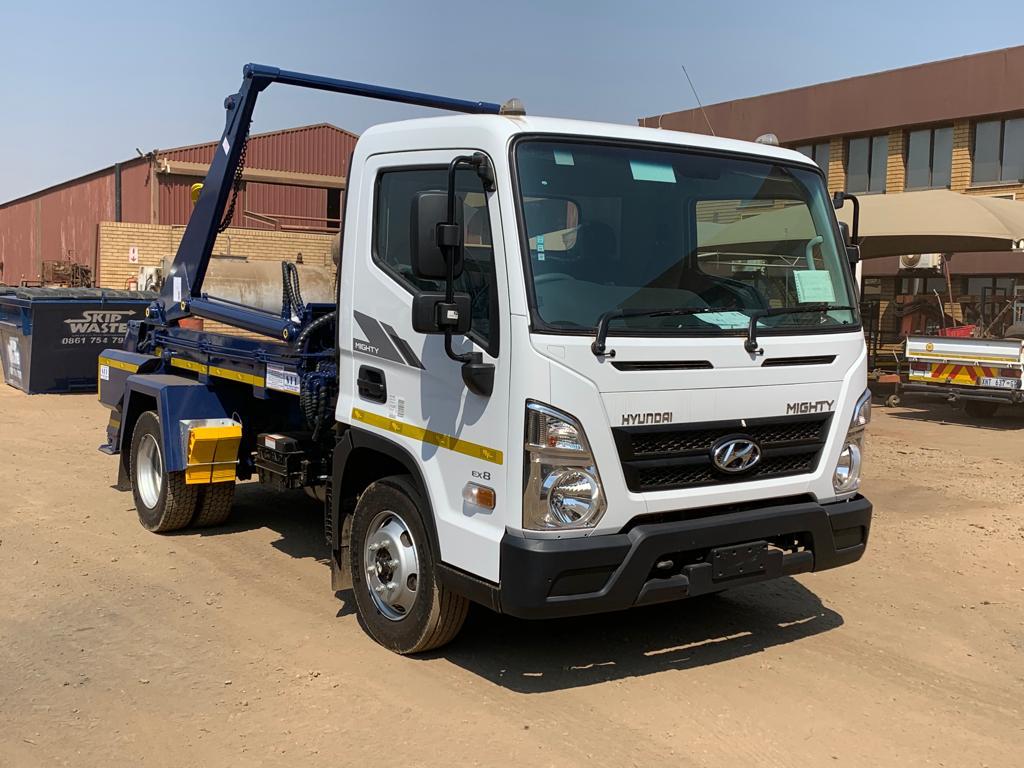

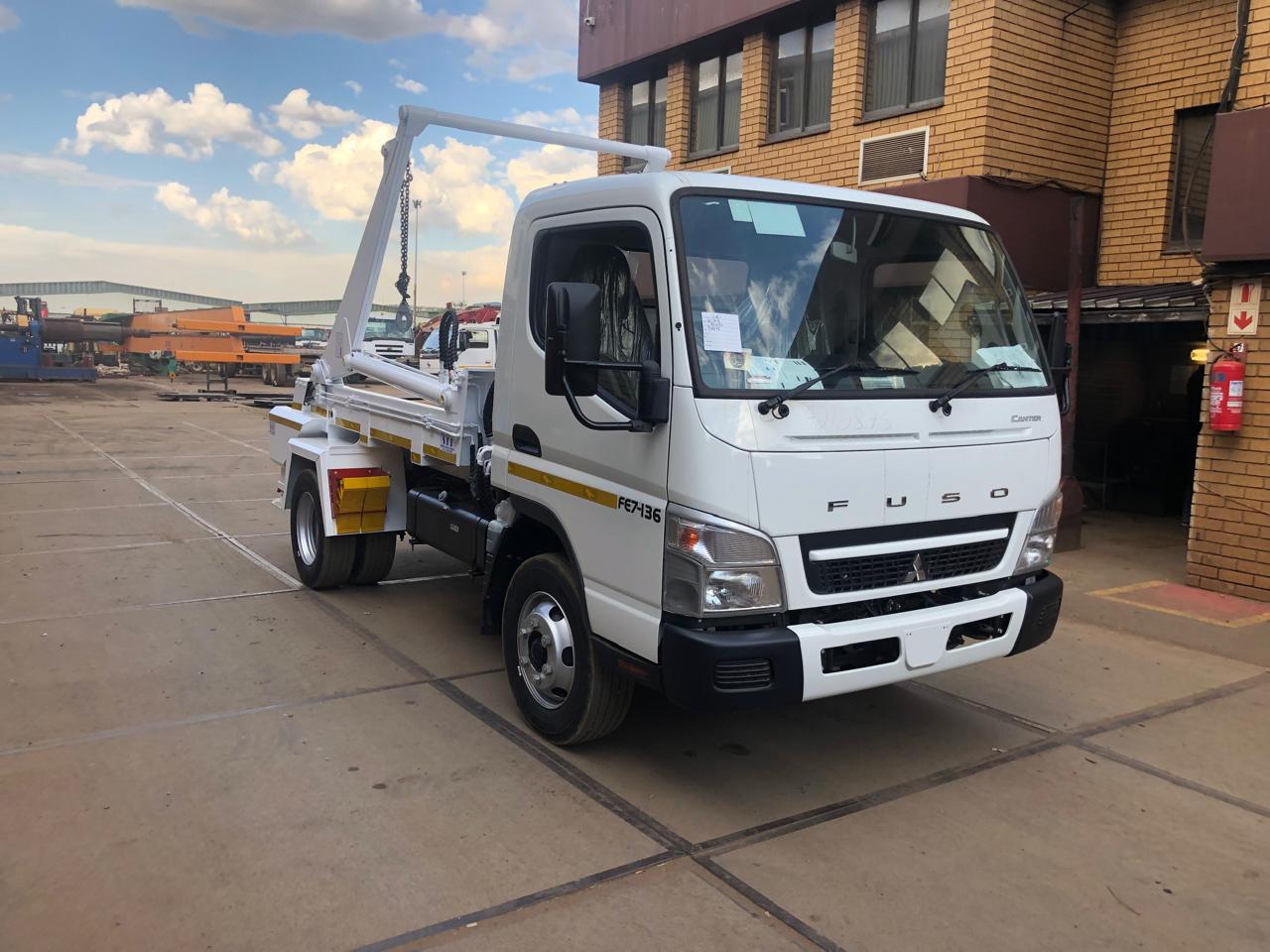

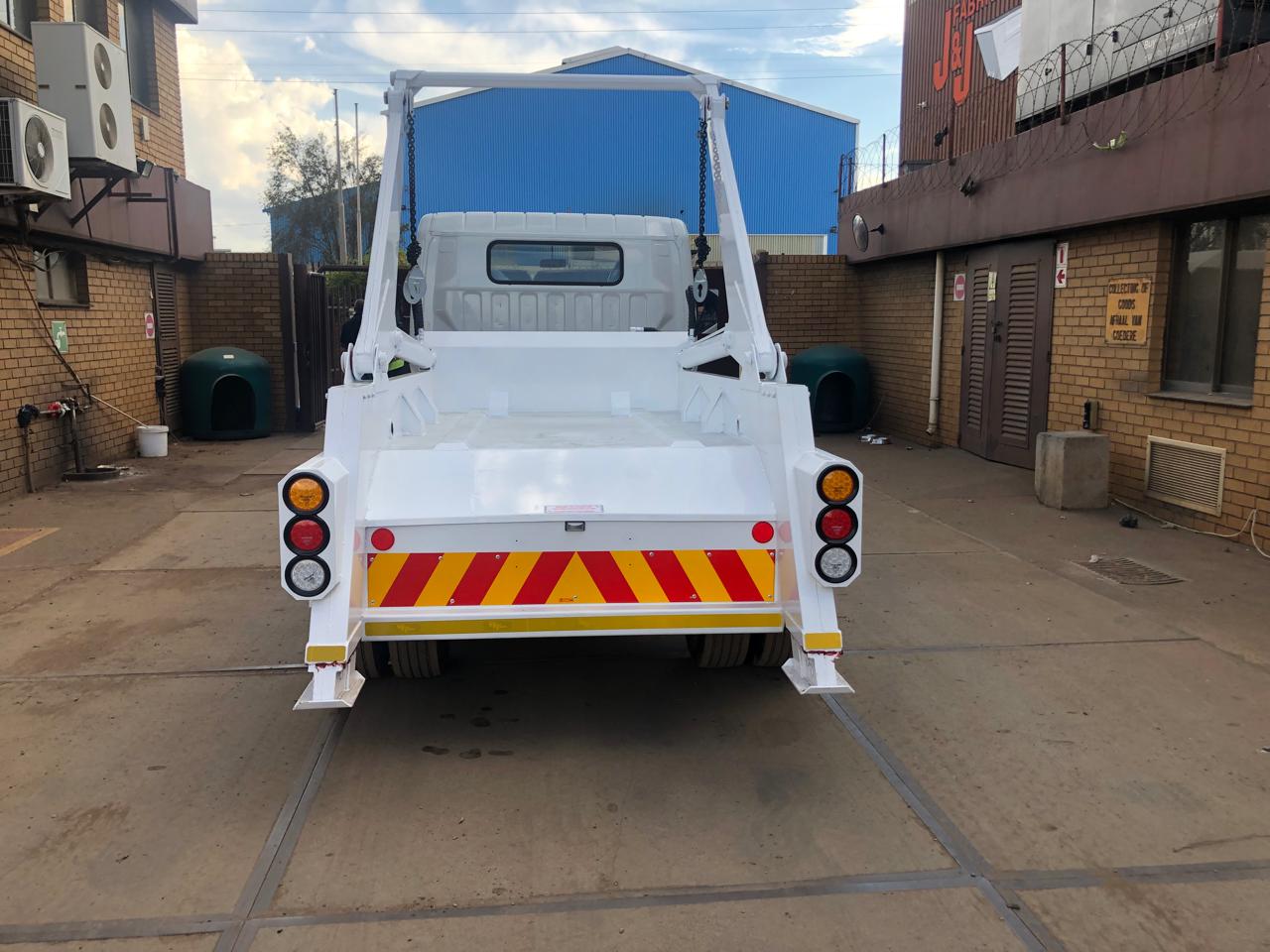

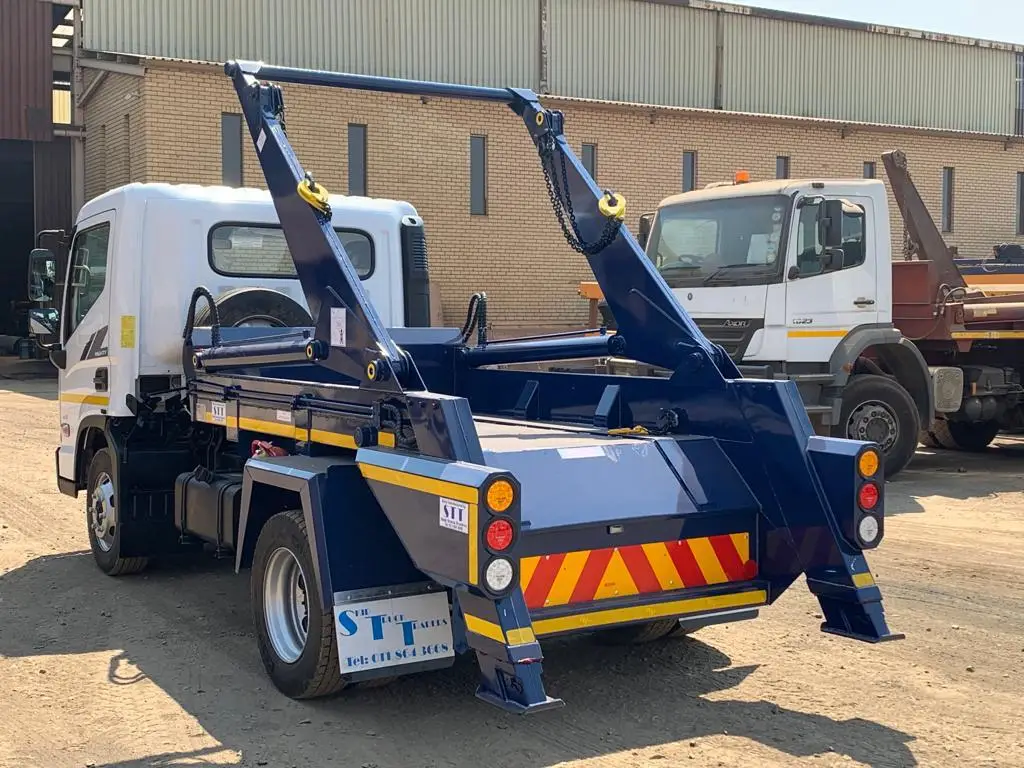

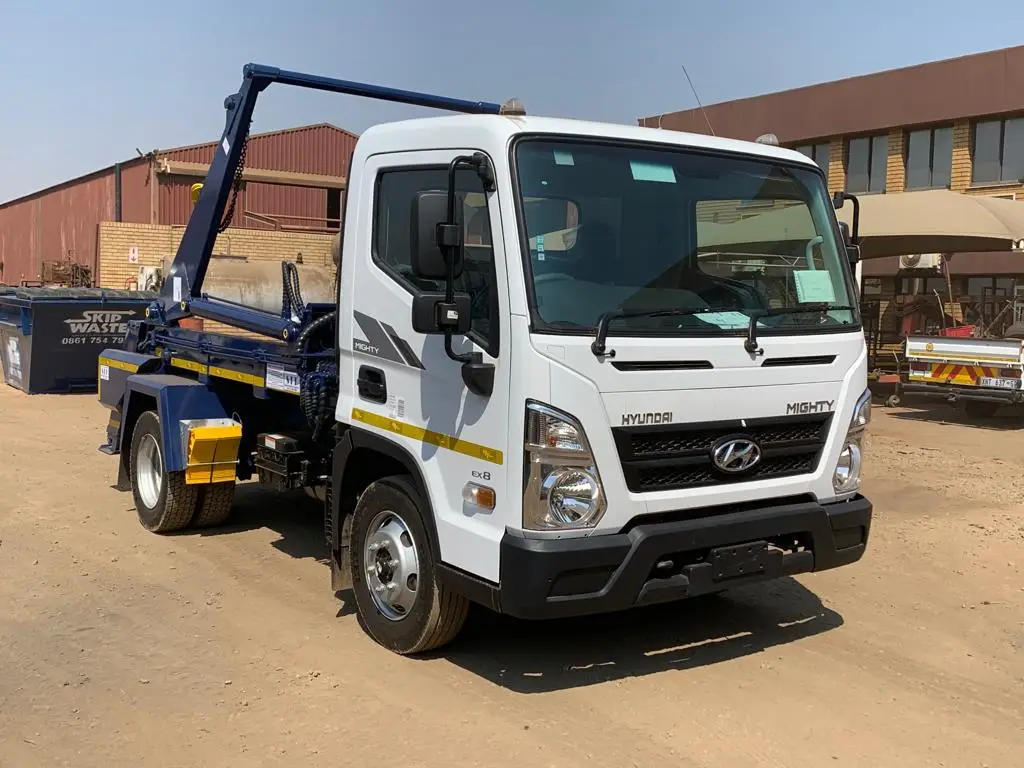

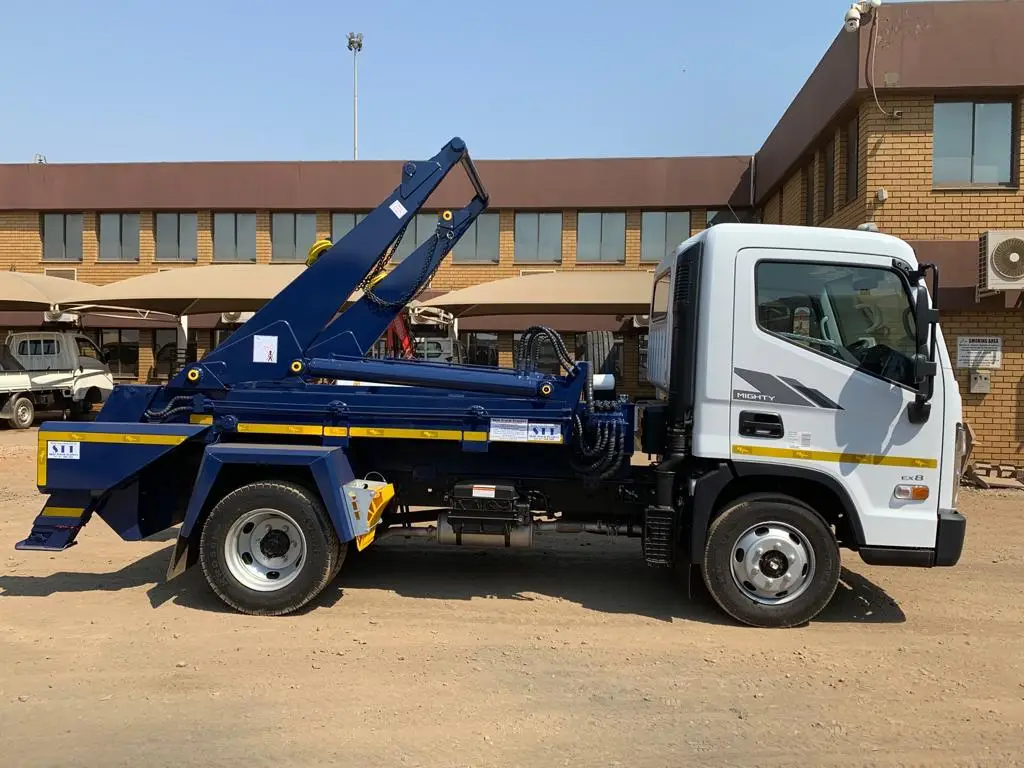

This body was designed for the small 1-man business entrepreneur to transport 1.75 to 3 cubic metre mini skips for the collection of garden/builders rubble and general waste in the residential sector. These bins being small enough to sit on the pavement without obstructing traffic. This unit is the smallest in our range and priced accordingly to accommodate first time buyers as an entry level waste truck one step up from the trailer collection design. These units are completely manufactured locally so spare parts are readily available on request.
| OPTION | 9 Ton Skip Unit |
| Height From Ground | 2900mm |
| Width | 1650mm |
| Required CA Dimension | 2400mm |
| Tare Weight | 900kg |
| OPTION | 9 Ton Skip Unit |
| Side Beams | 3mm Supraform SS550 |
| Deck | 4.5mm Mild Steel |
| Floor Cross Members | 3mm Supraform SS550 |
| Outrigger | 3mm Supraform SS550 |
| Arm Configuration | Standard |
| OPTION | 9 Ton Skip Unit |
| Hydraulic Pump Rating | 25 MPa |
| PTO Required Torque | 250Nm |
| Required Flow Rate | 60 L/min |
| Pump RPM | 1200 |
| Main Relief Pressure | 14 MPa |
| Hydraulic Tank Capacity | 40L |
