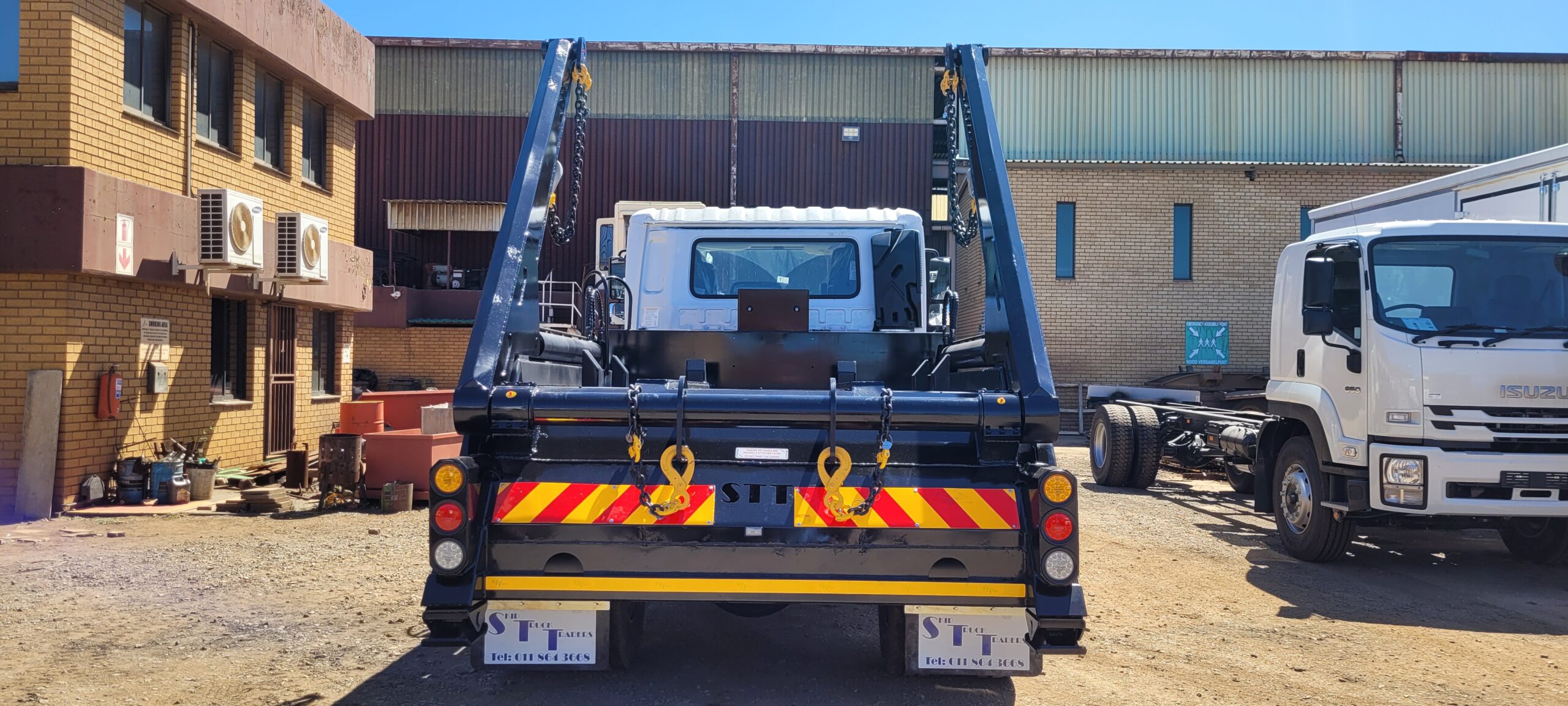

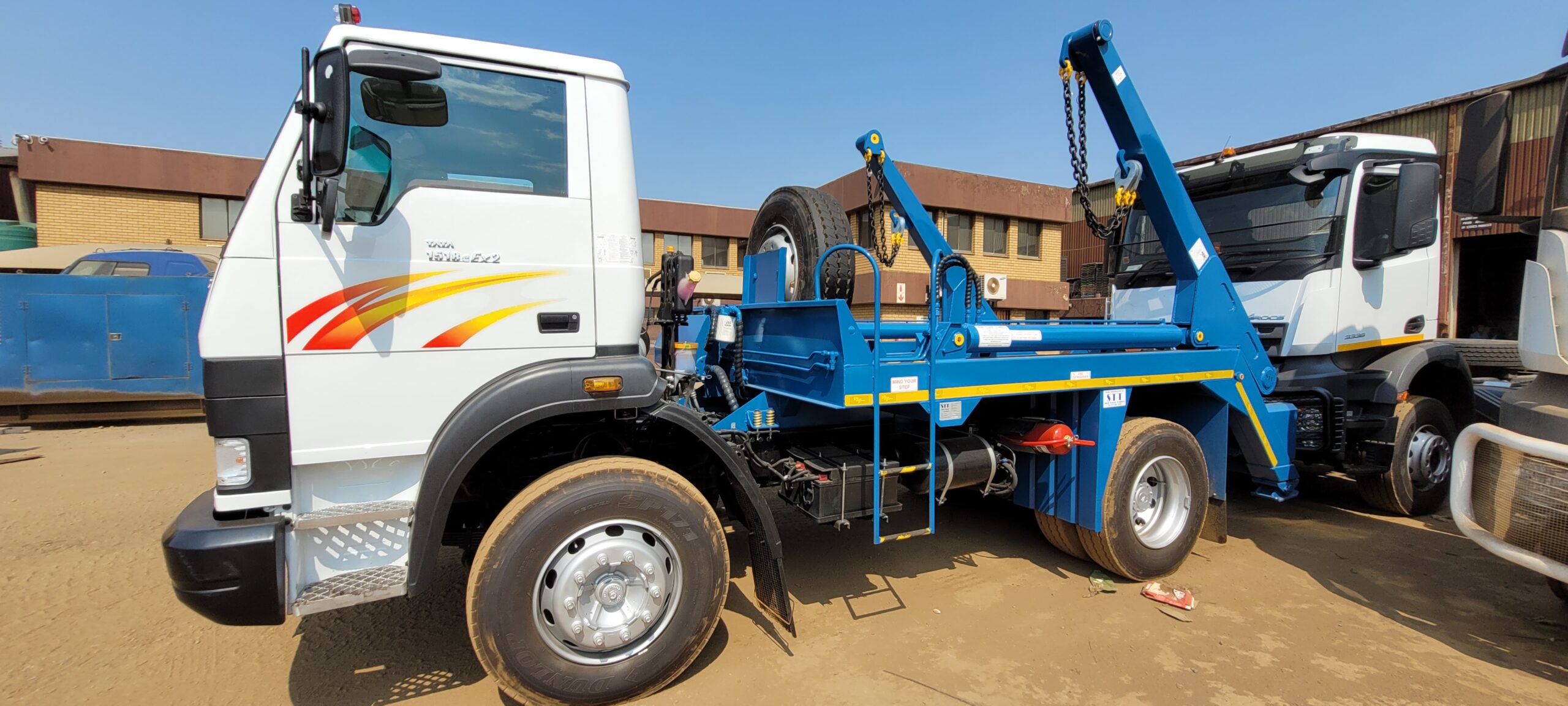

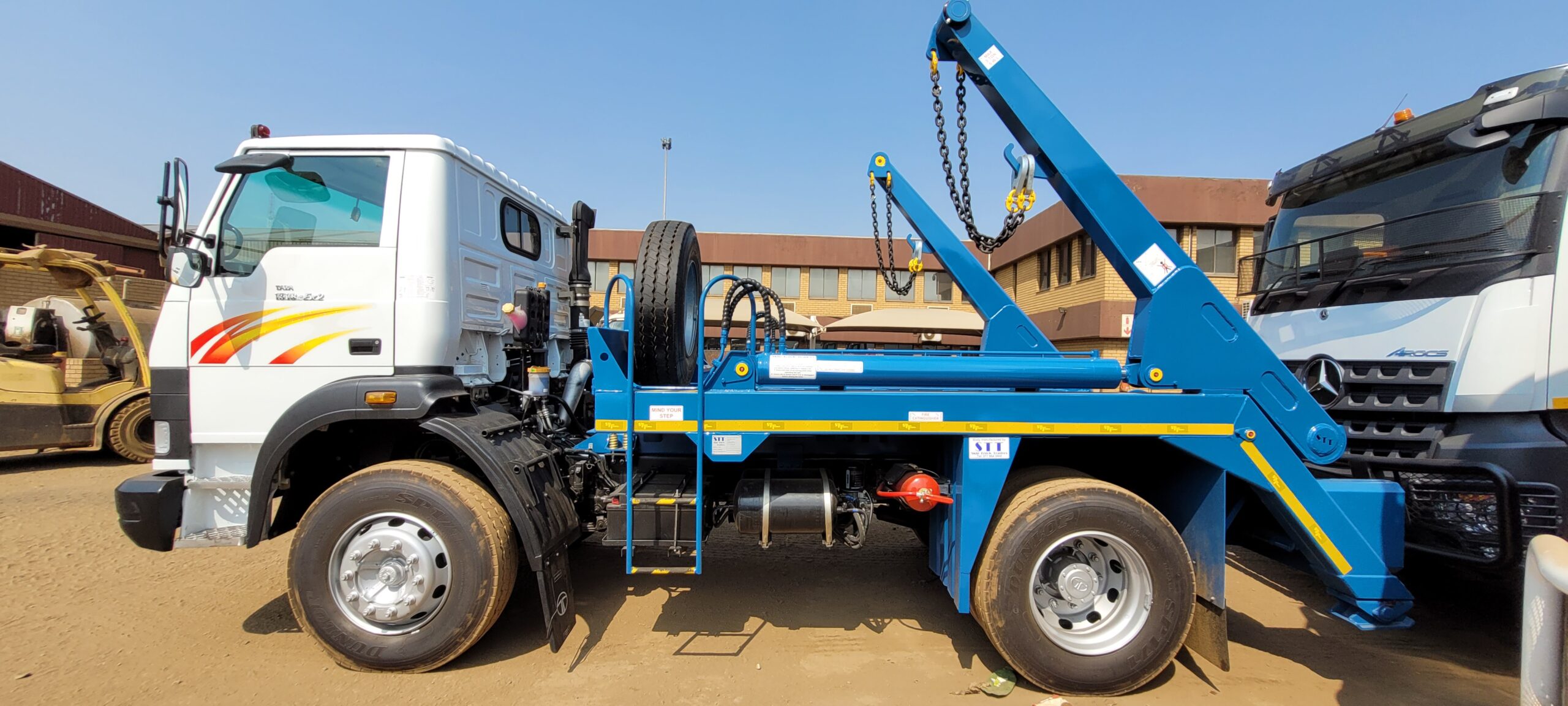

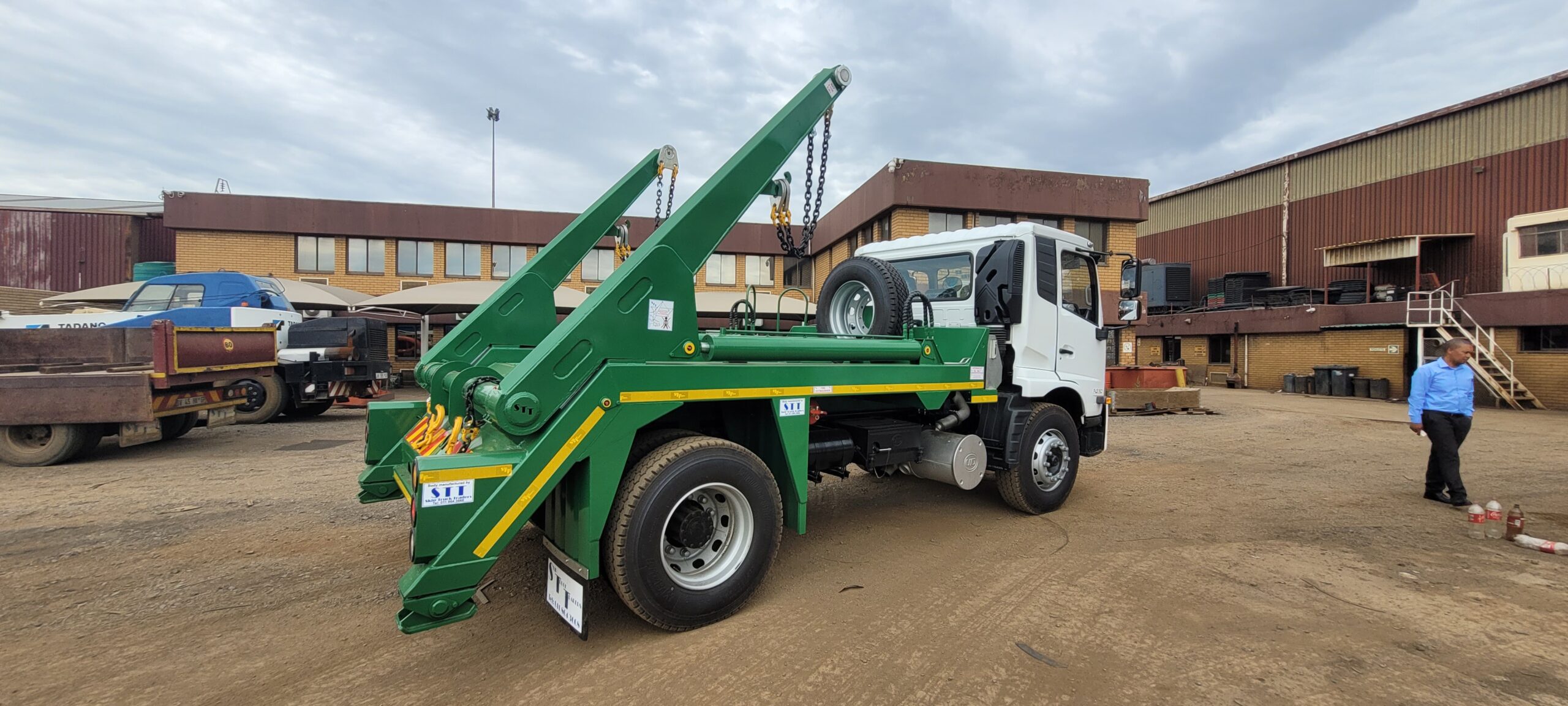

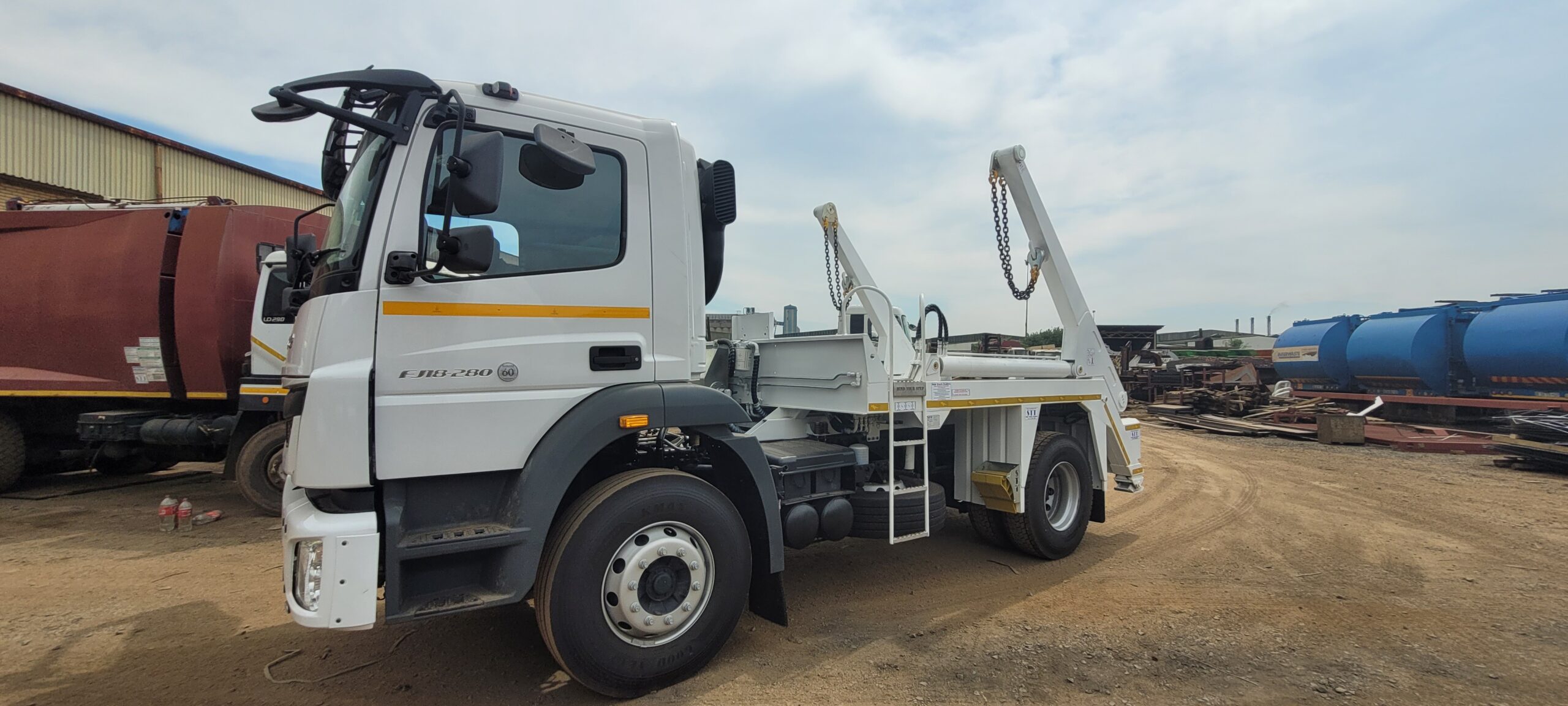

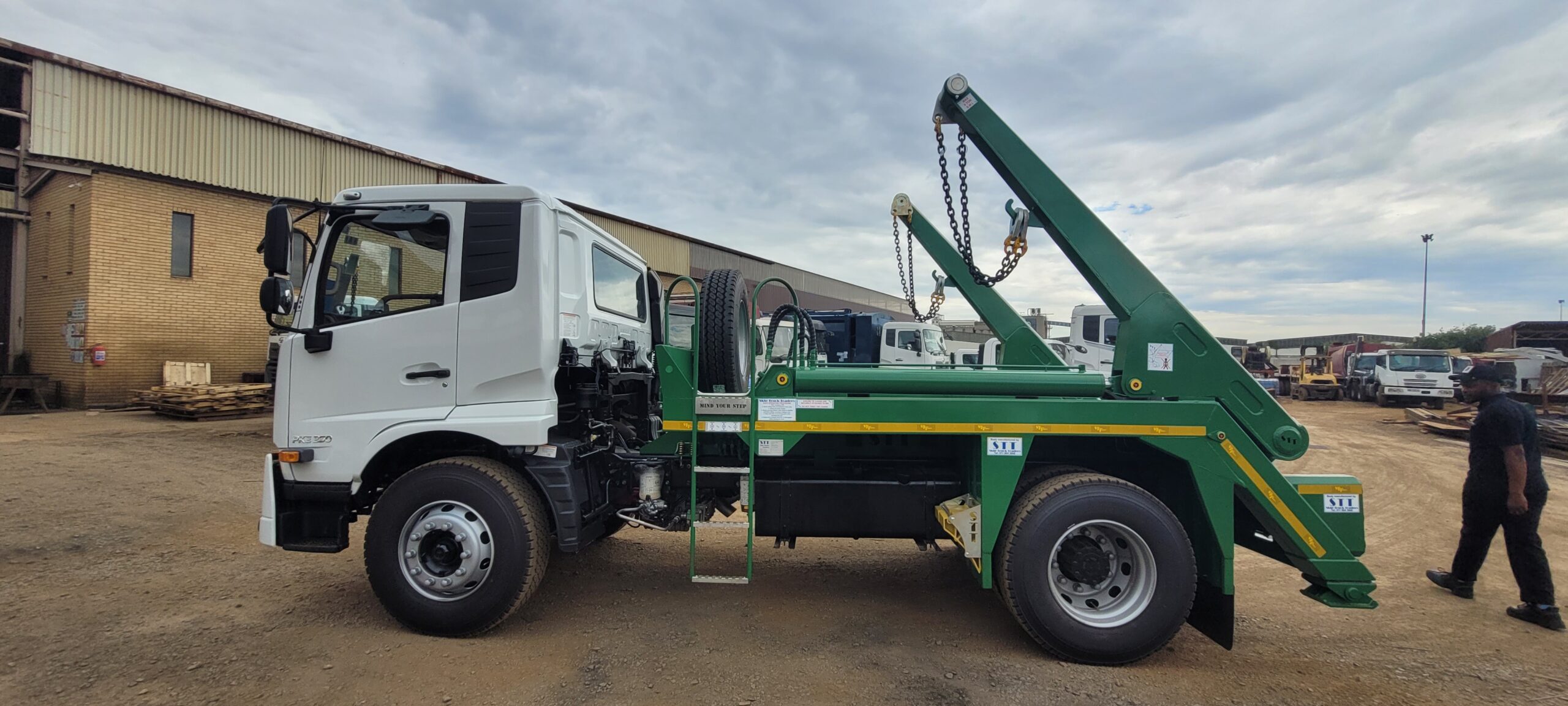

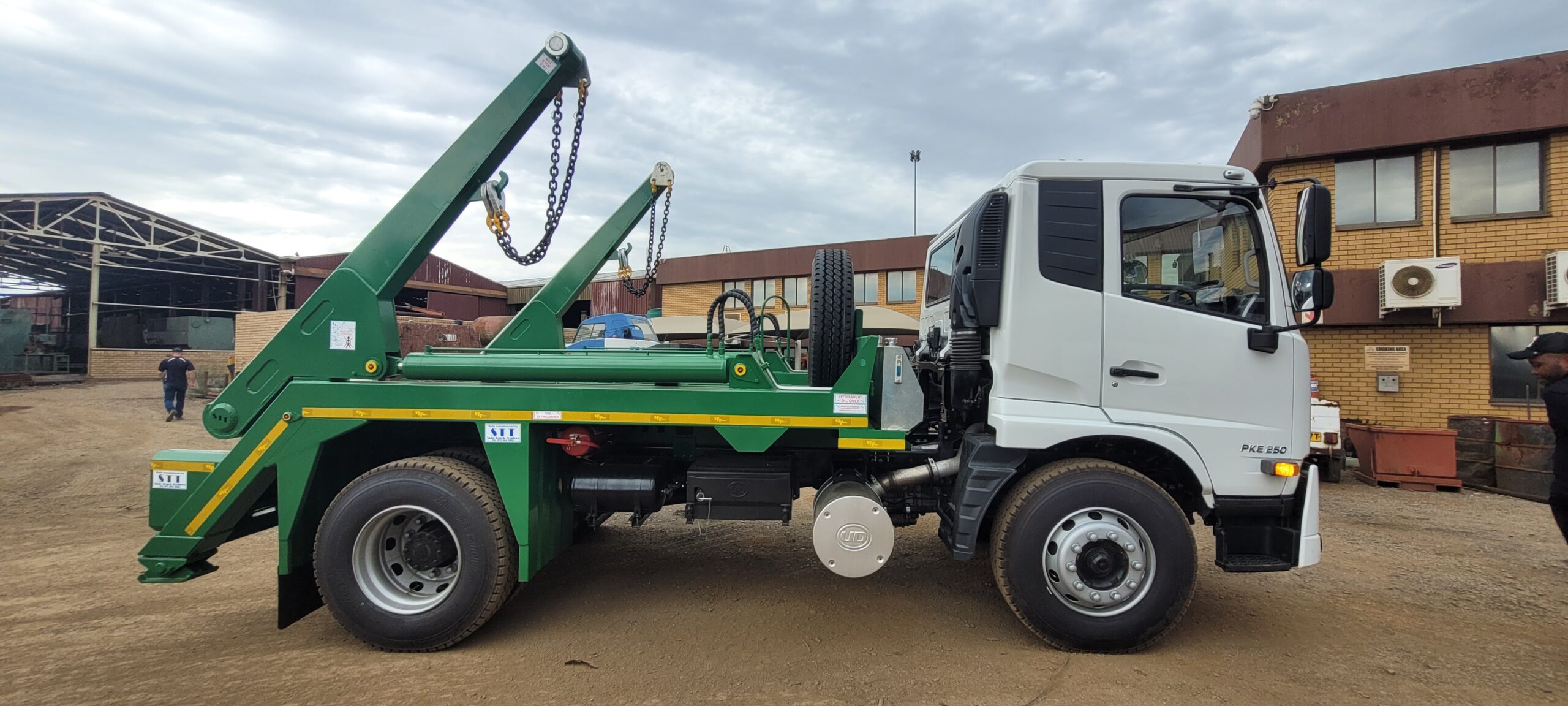

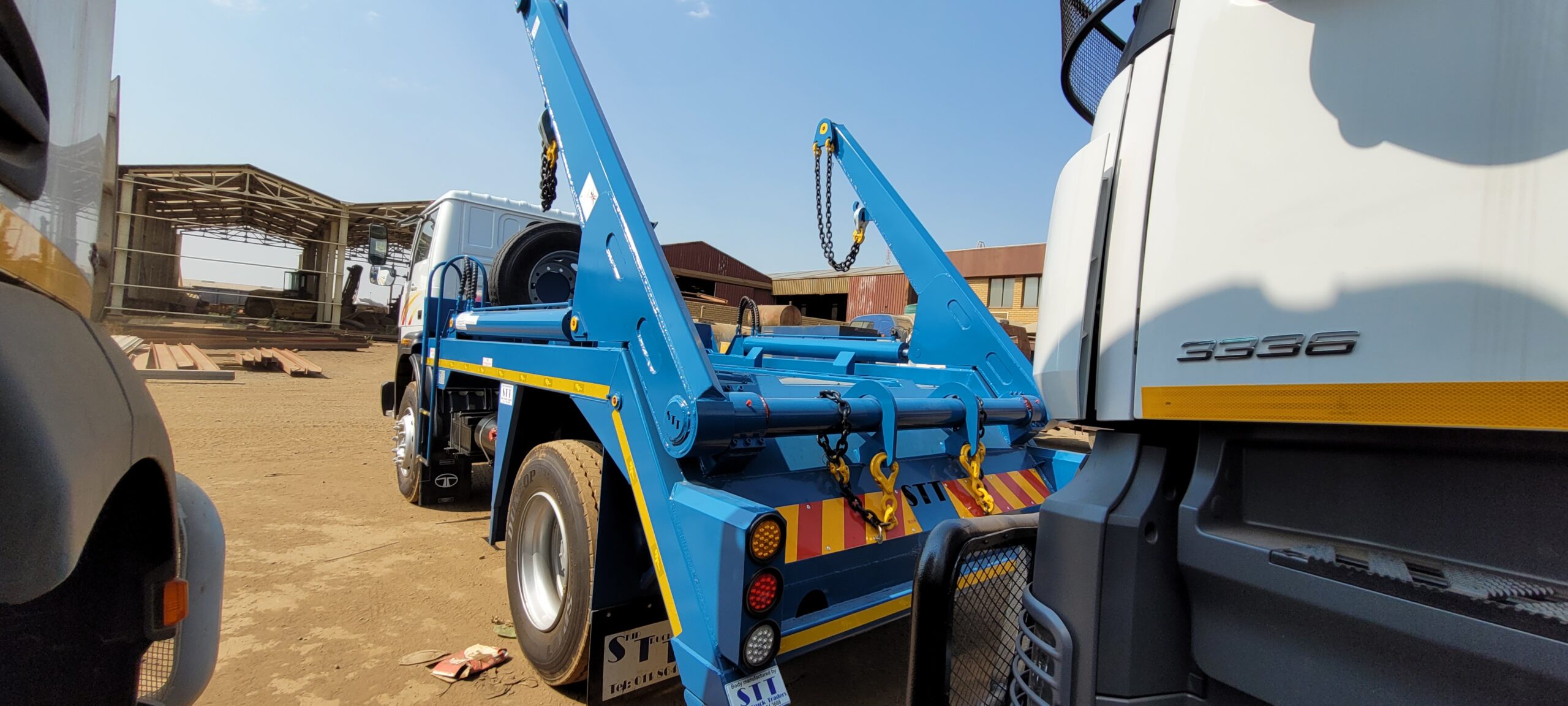

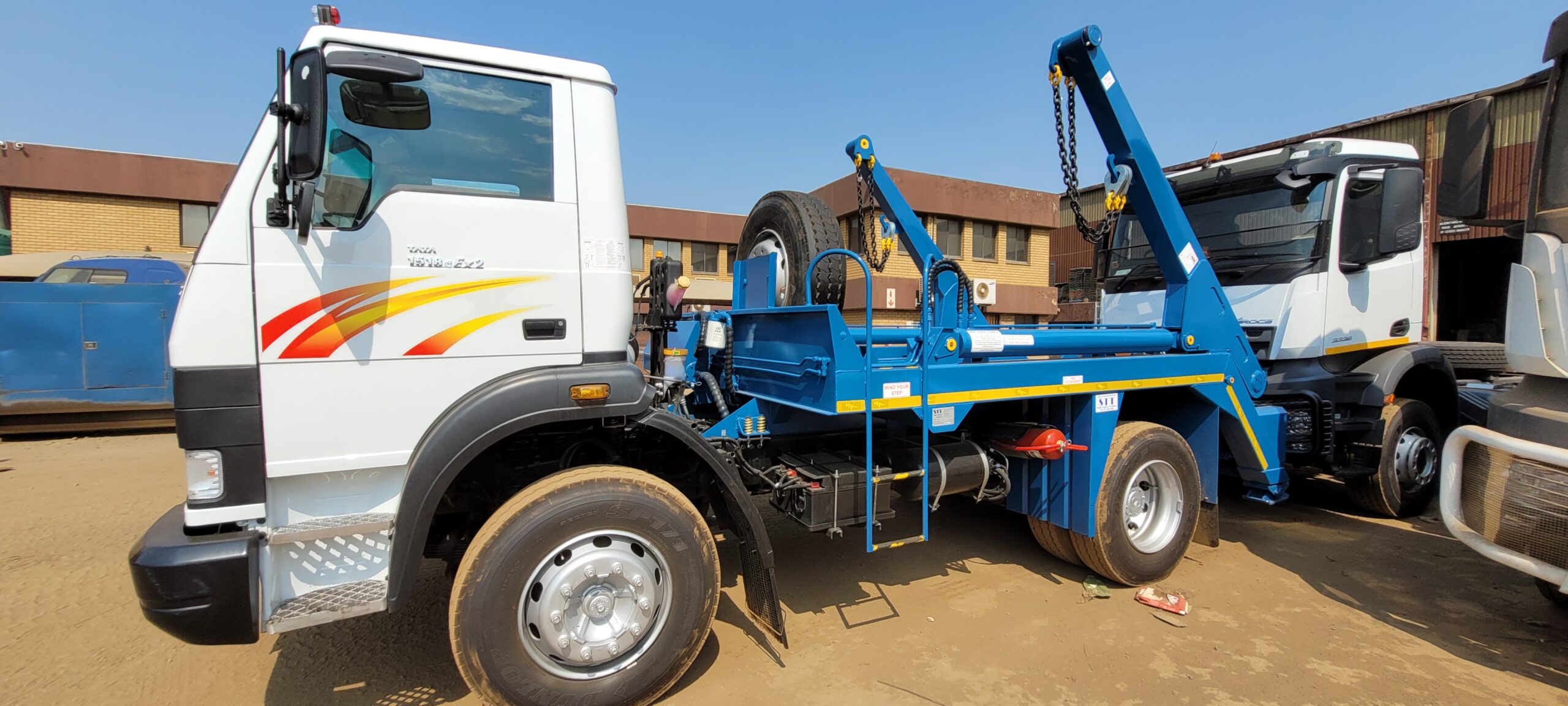

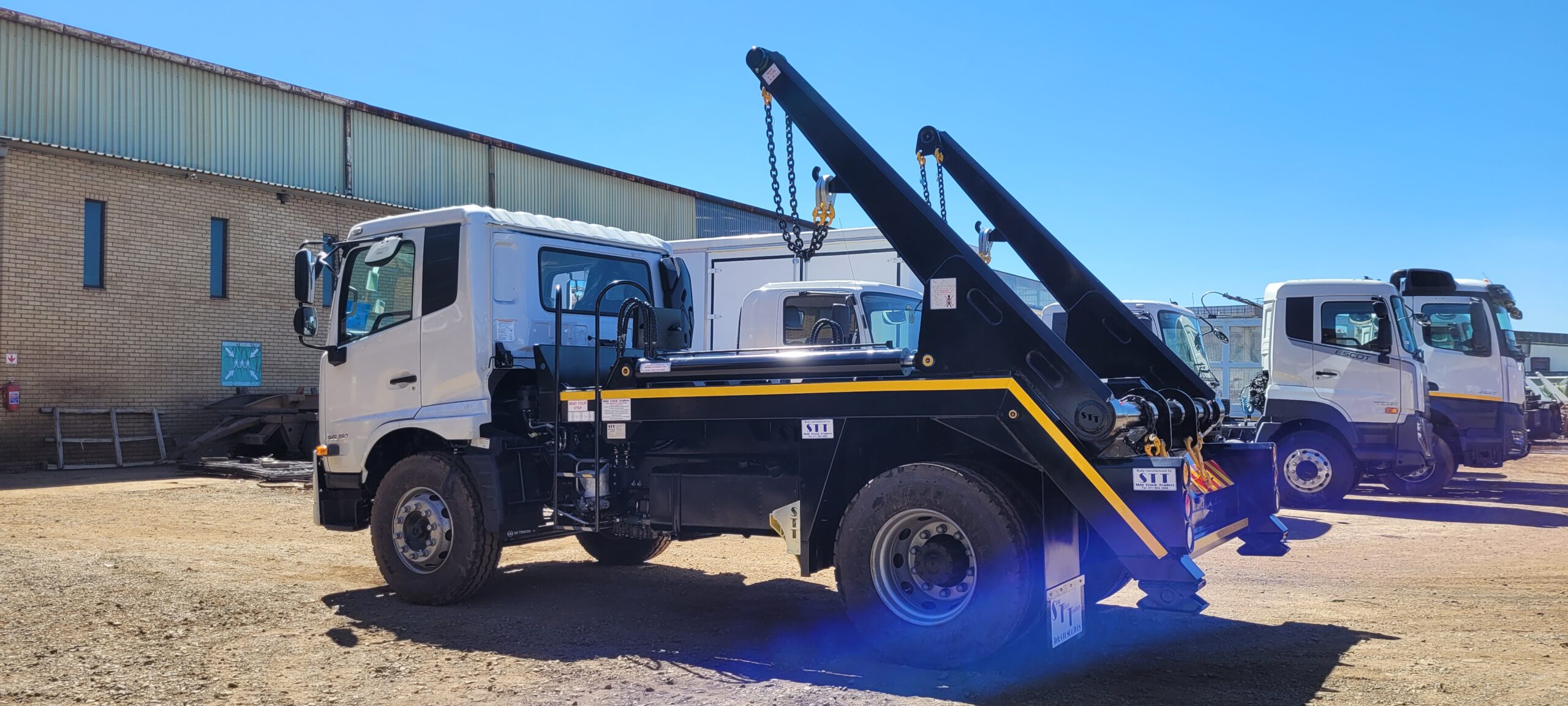

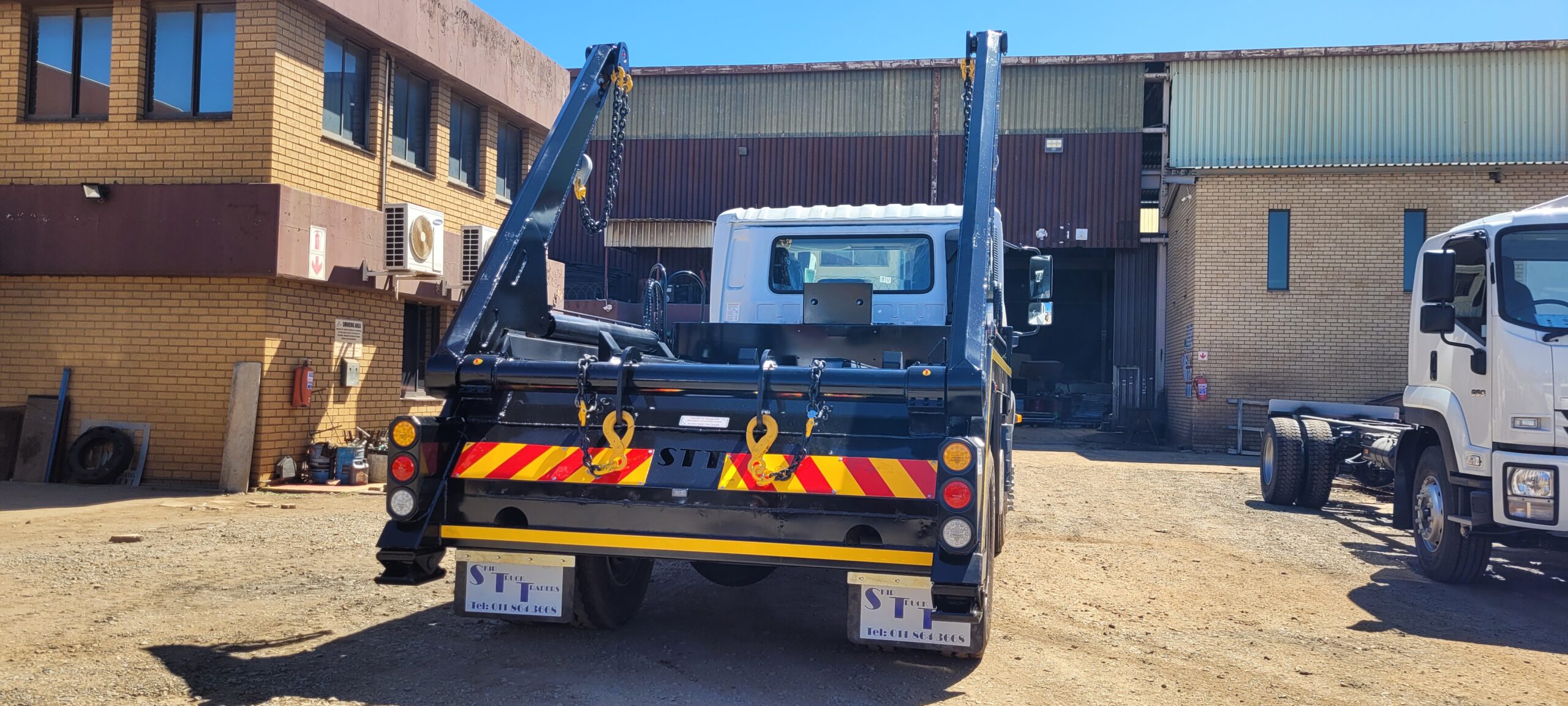

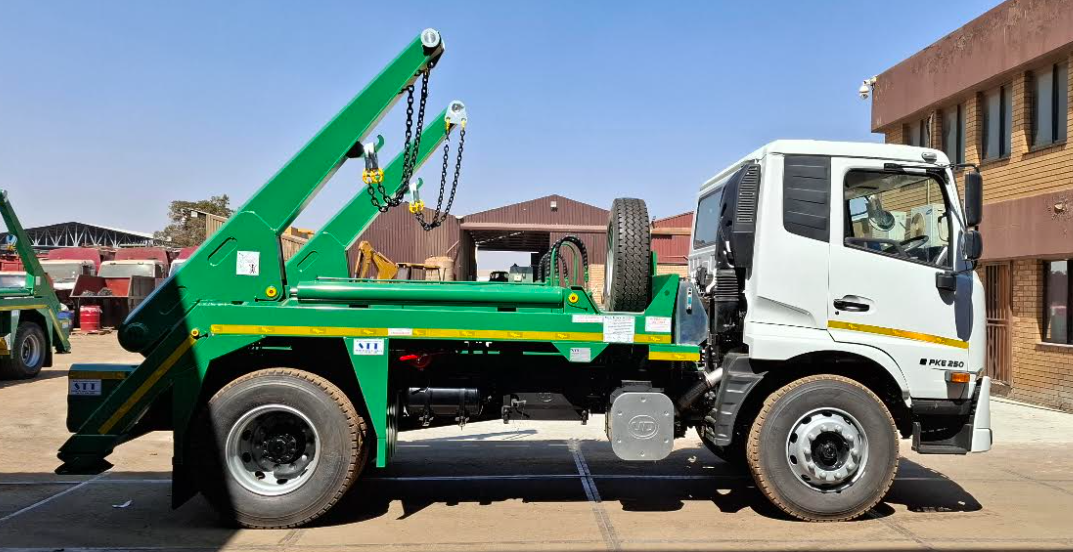

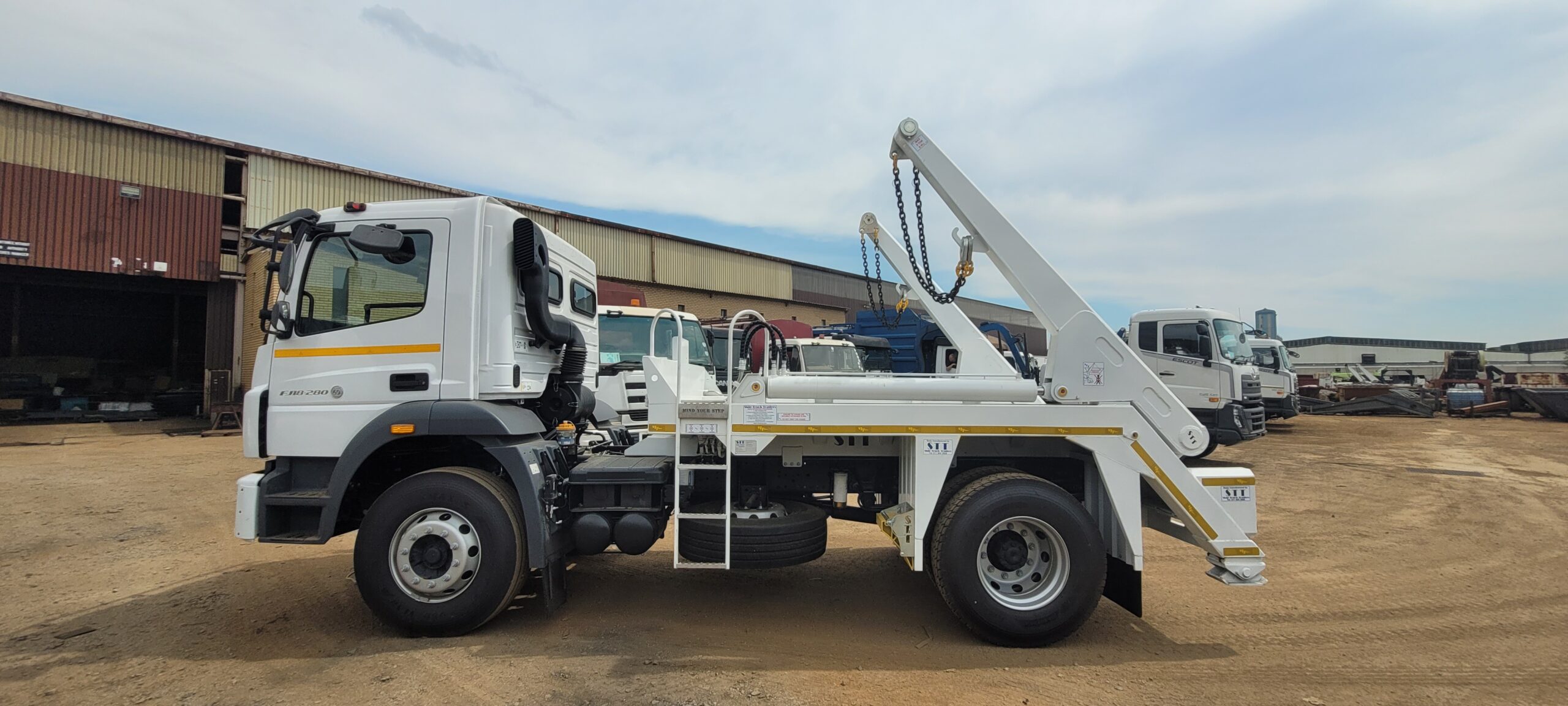

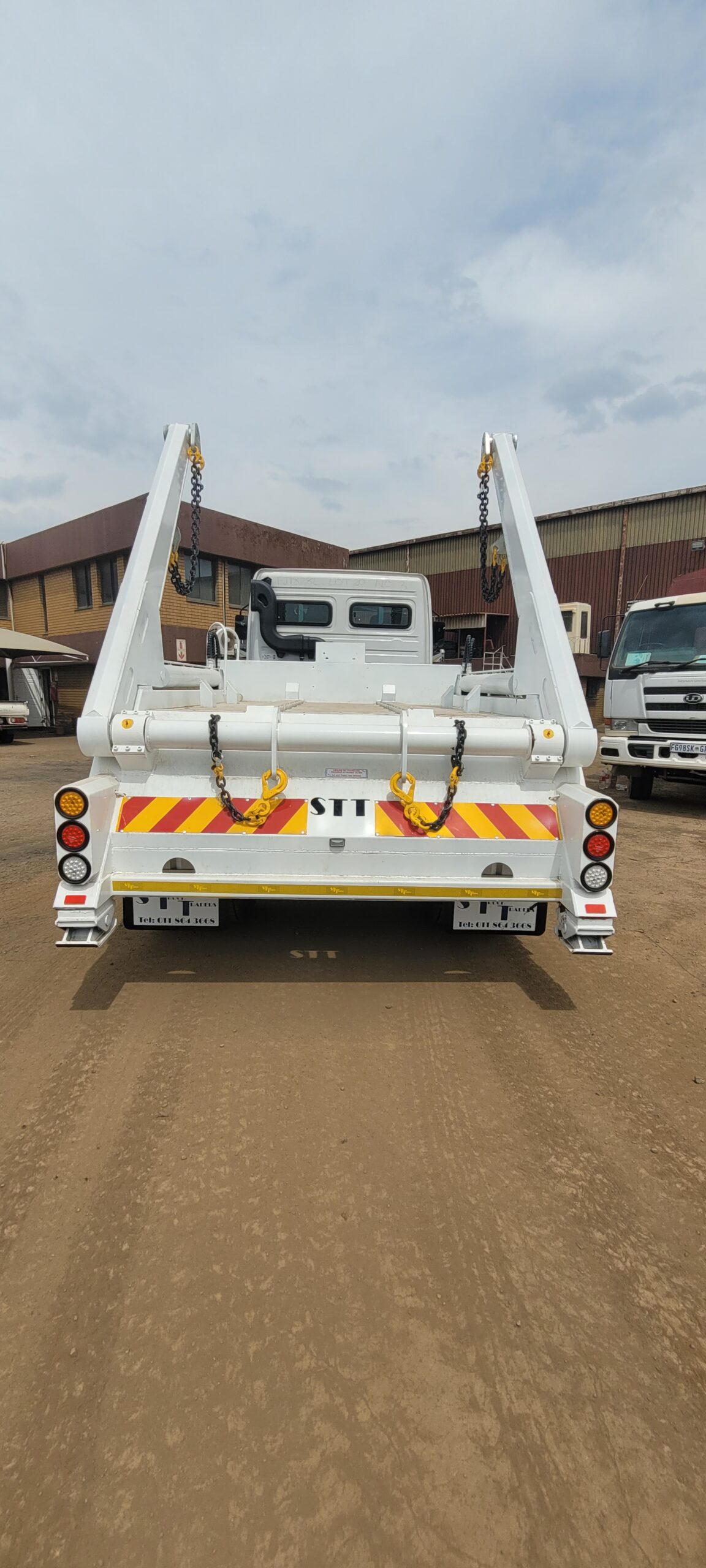

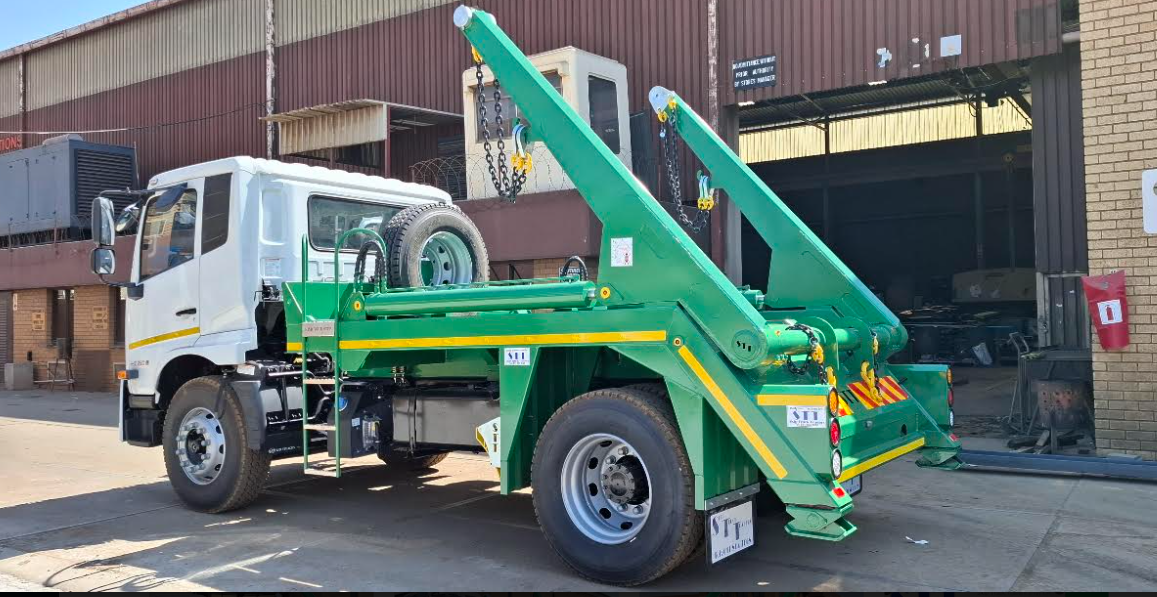

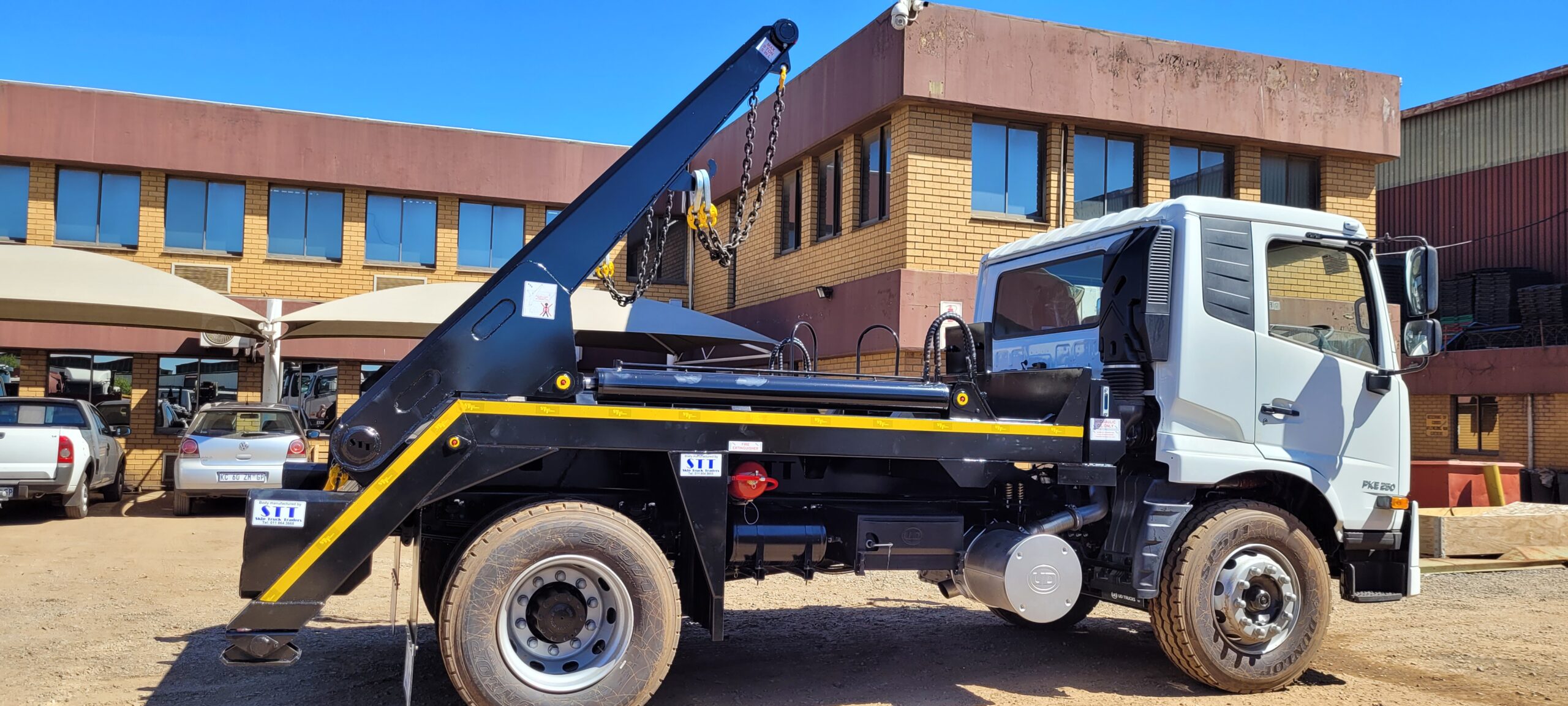

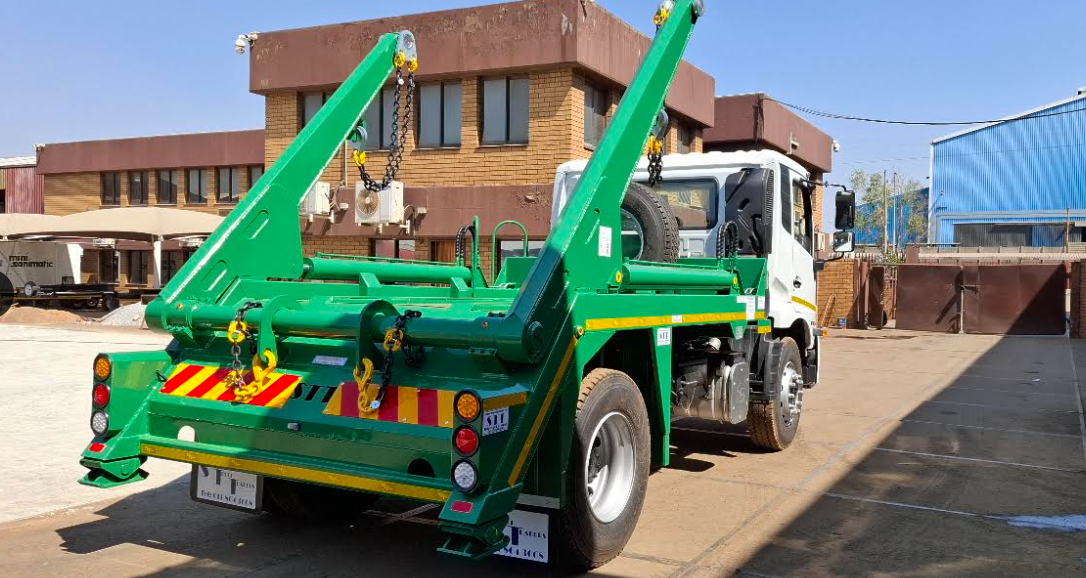

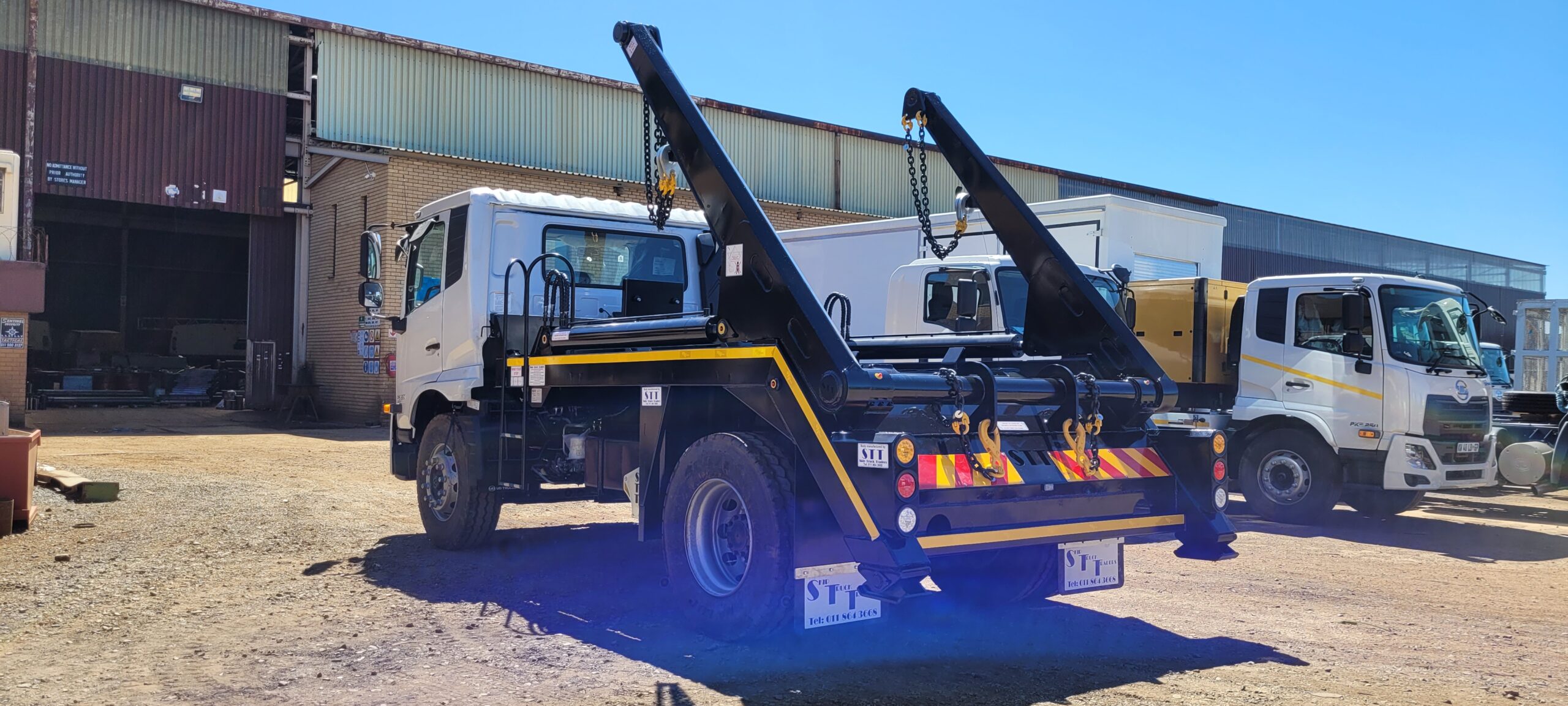

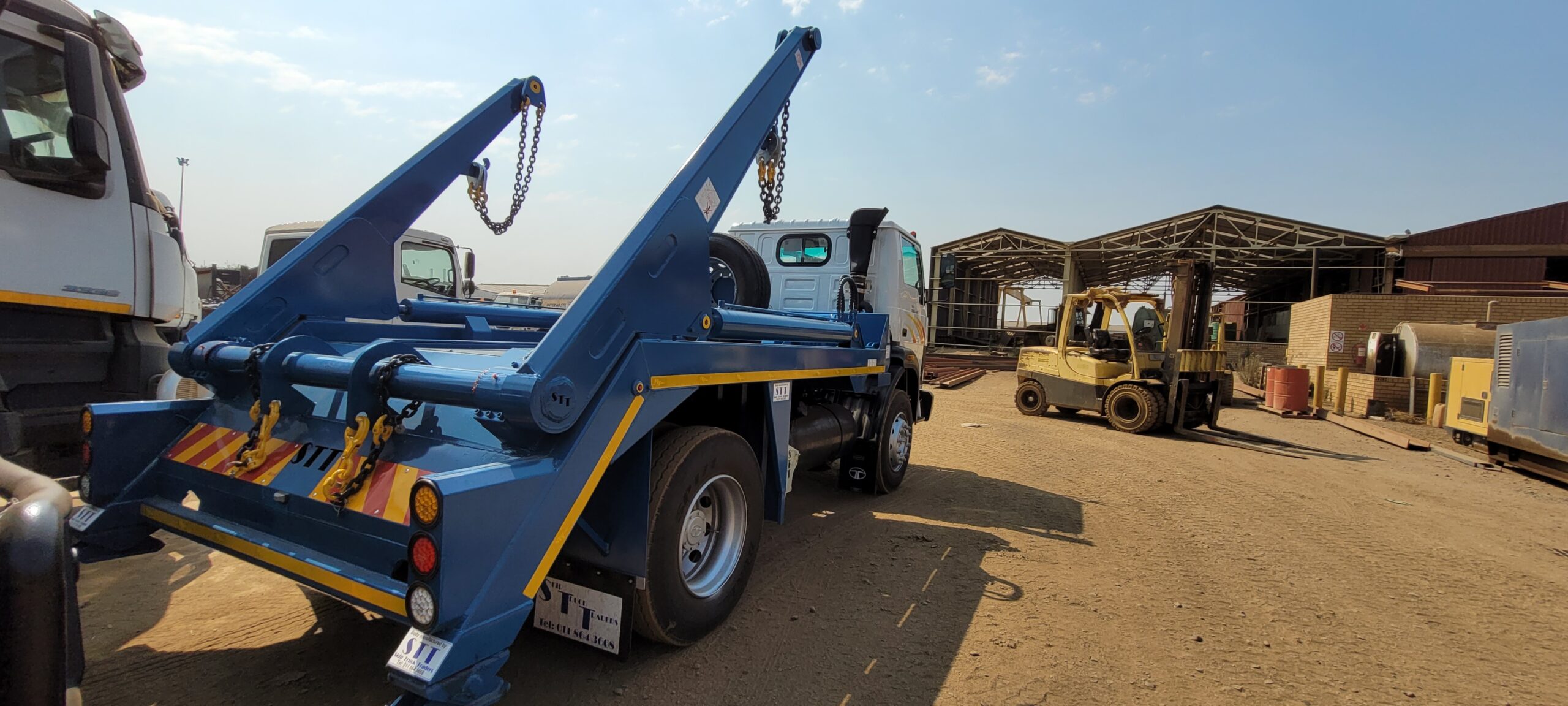

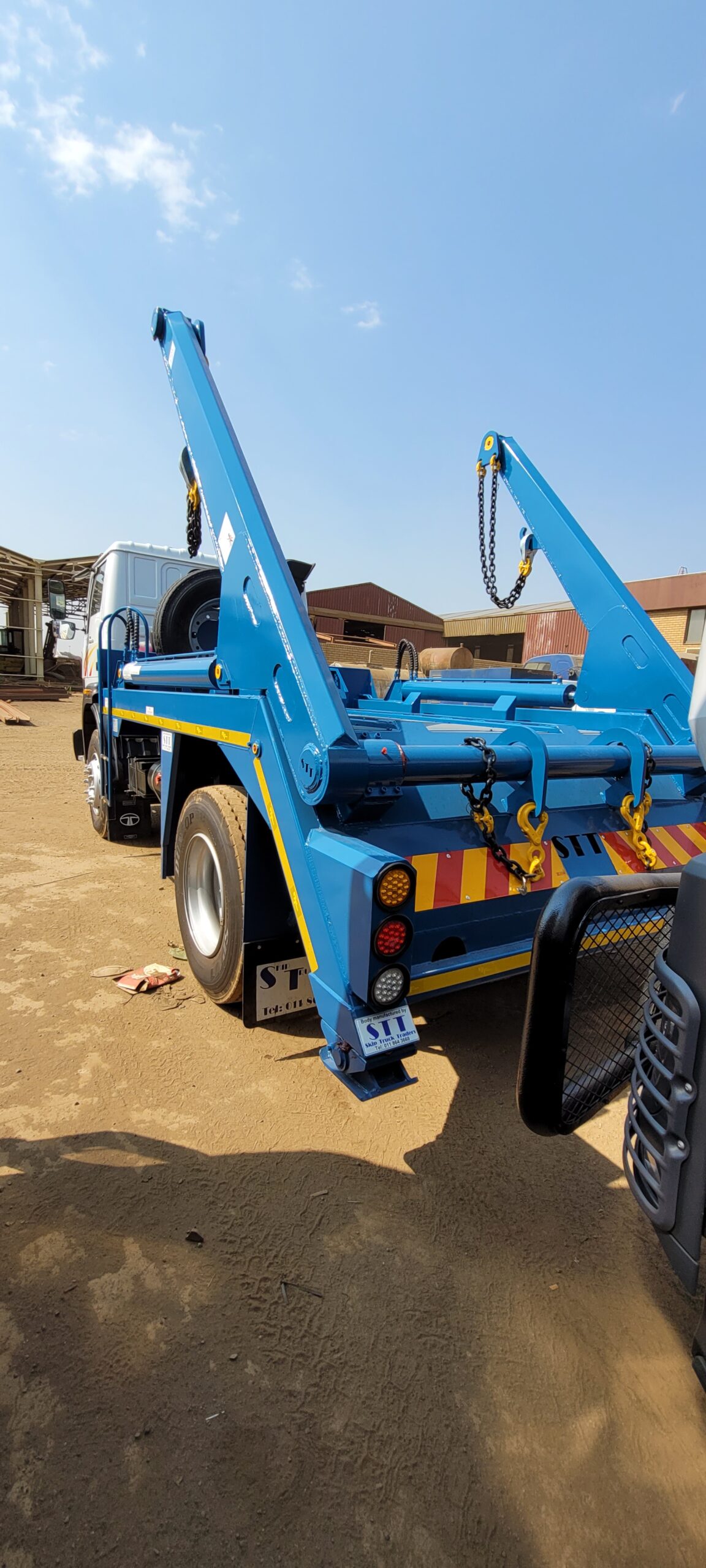

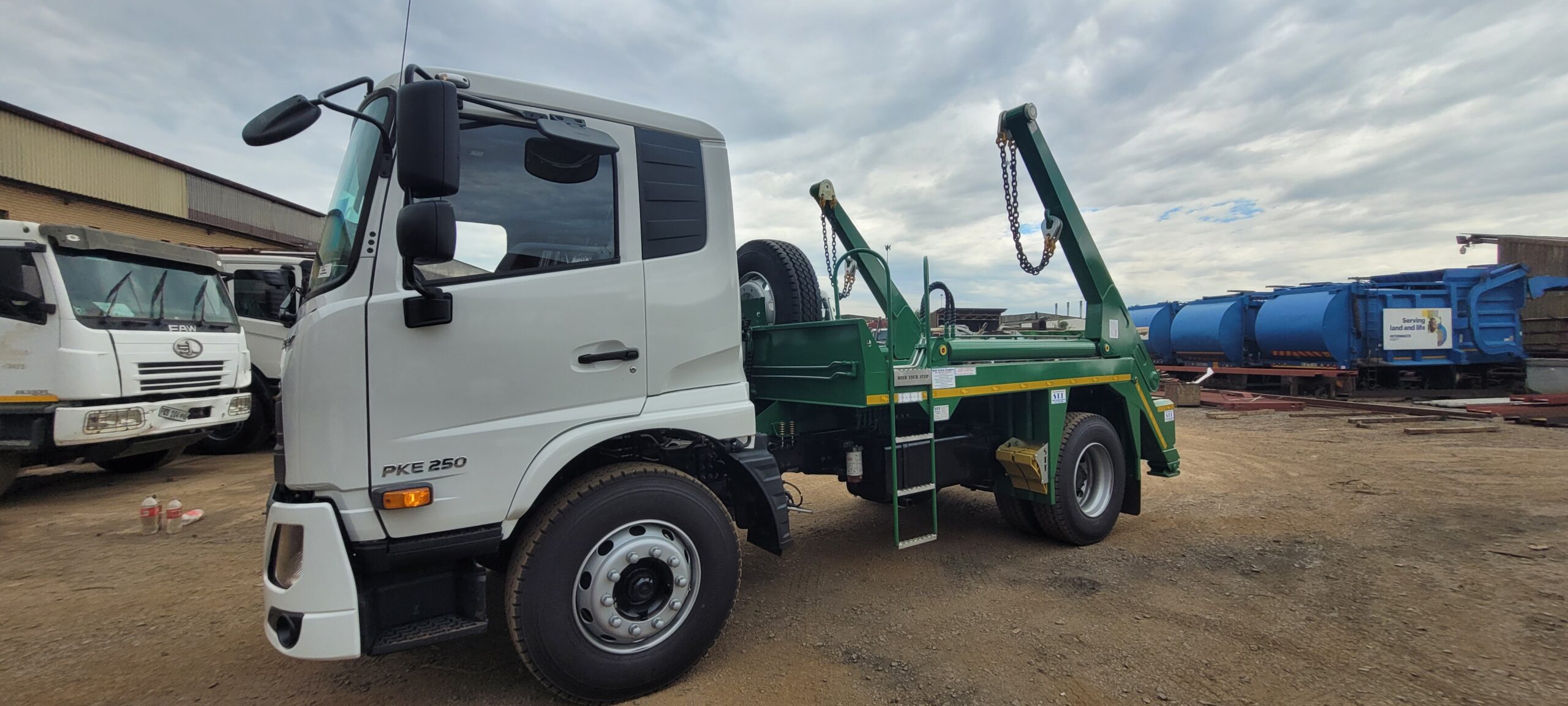

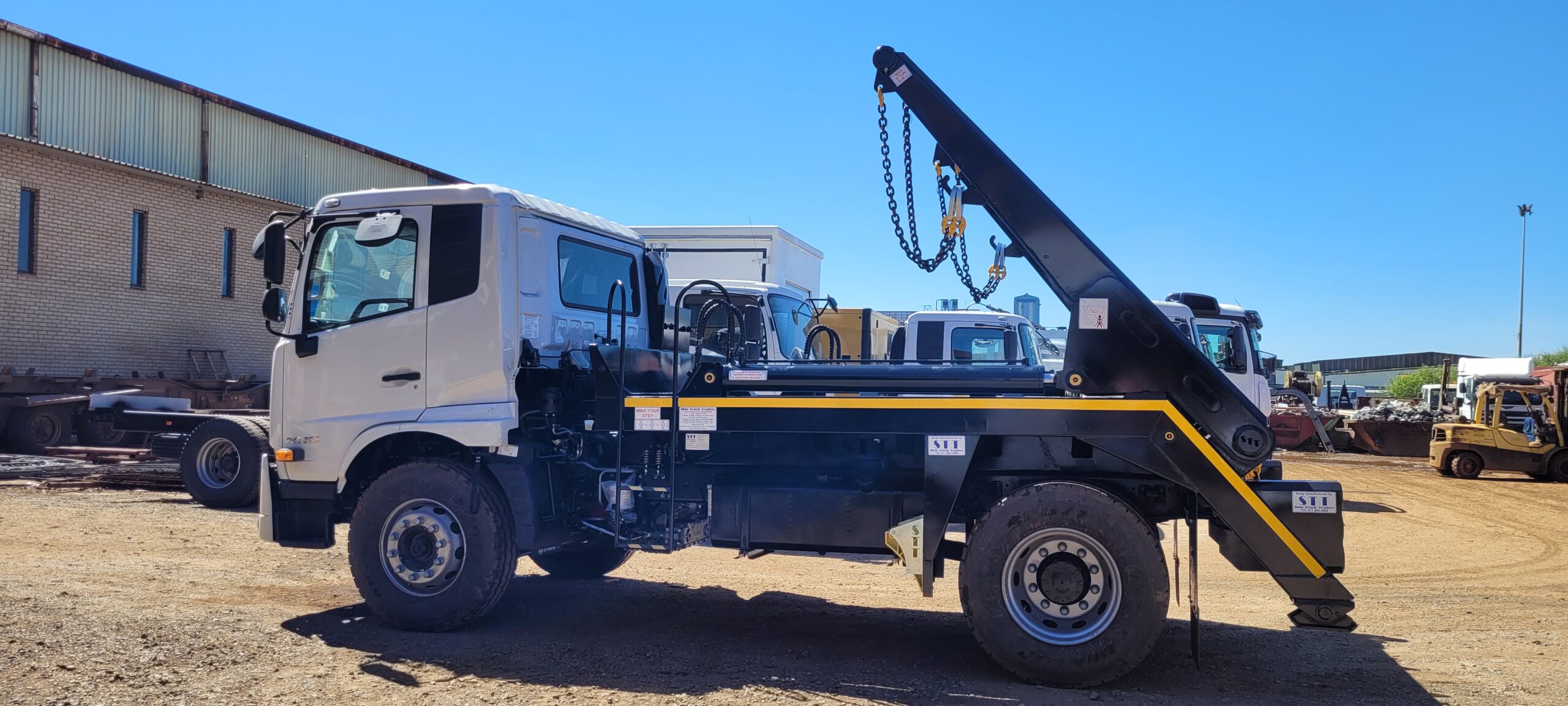

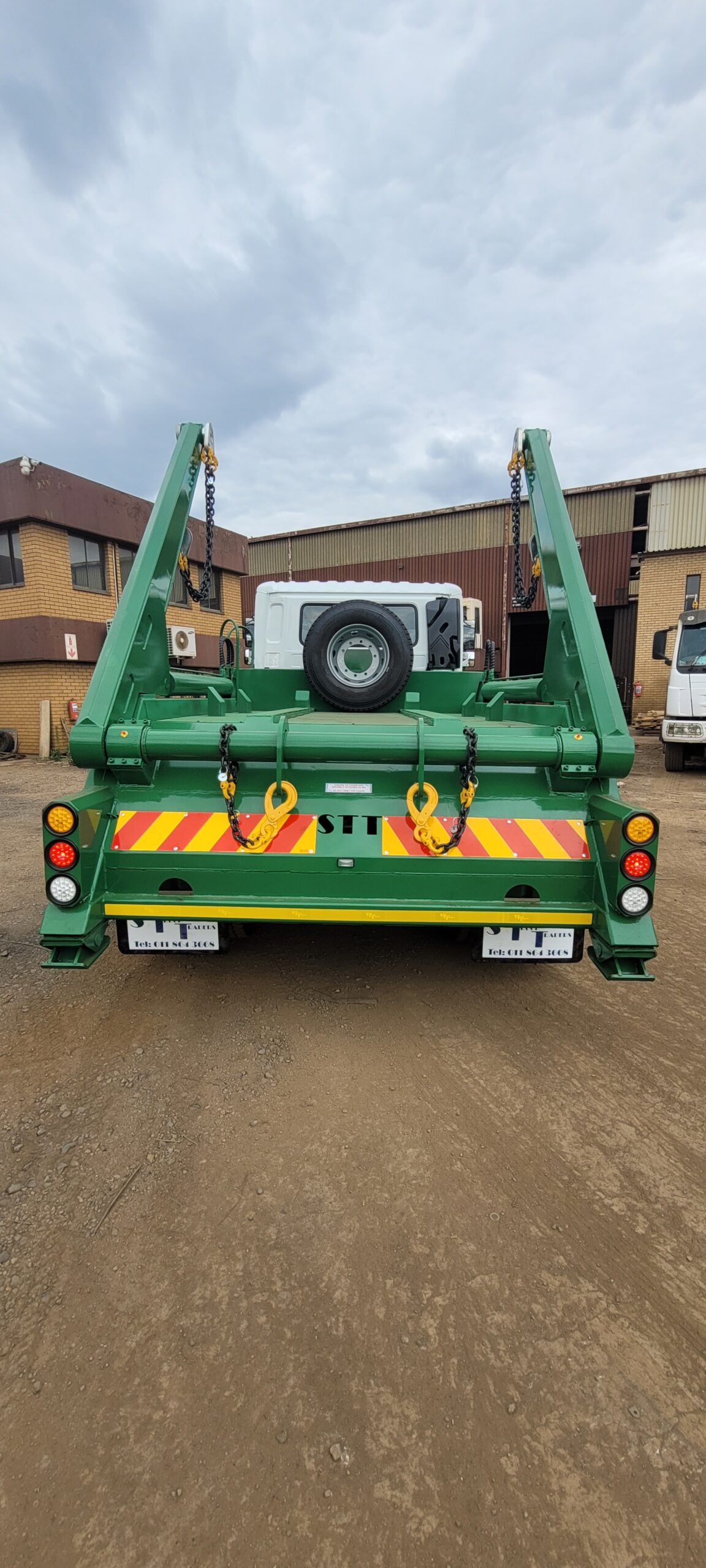

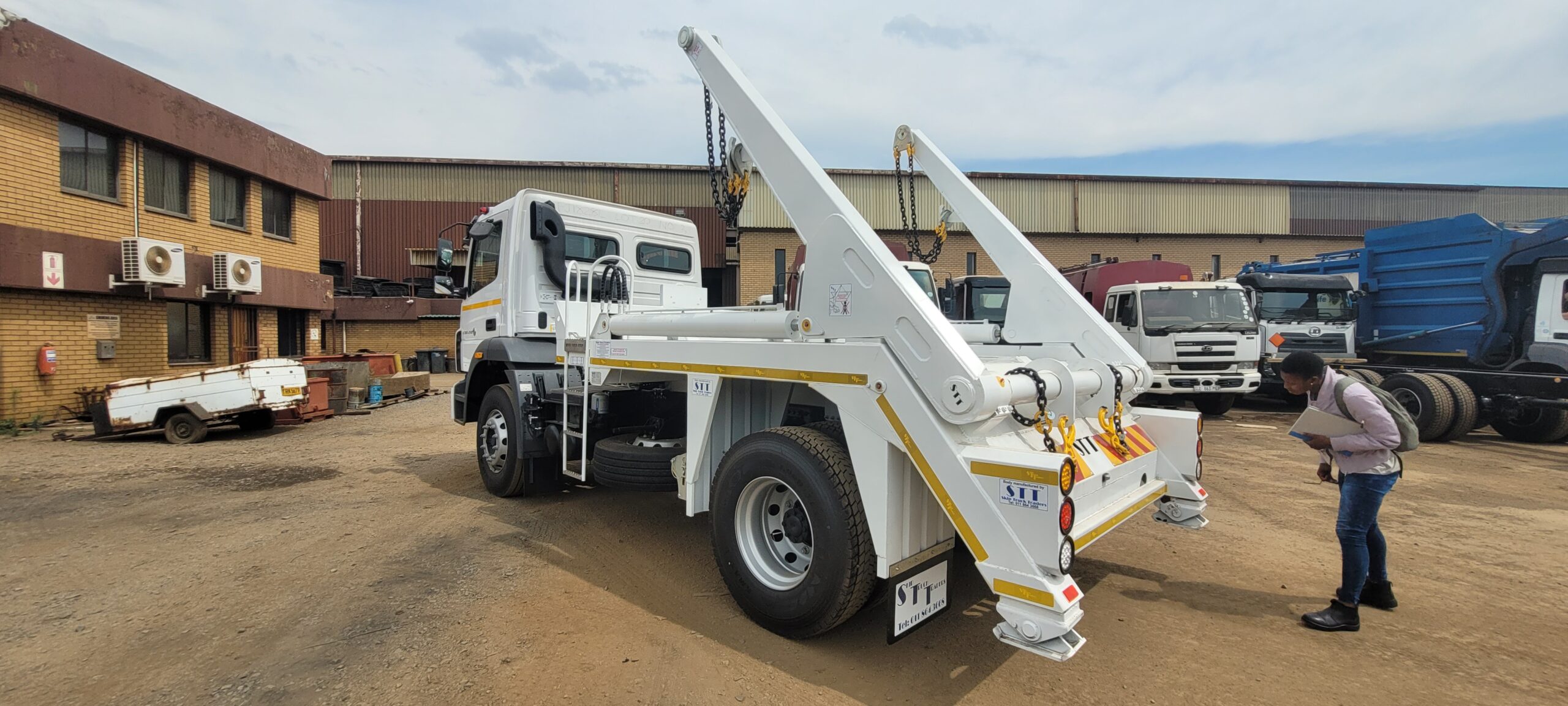

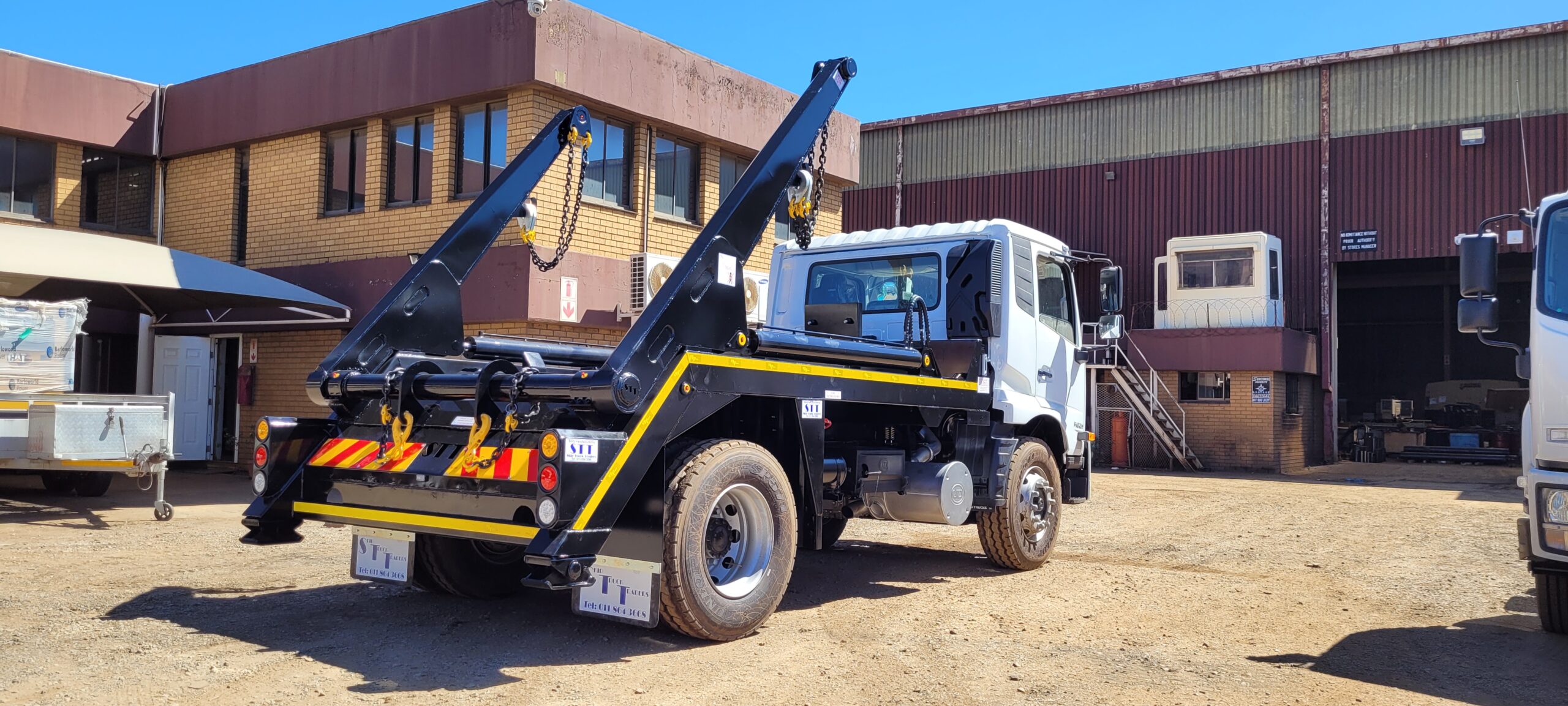

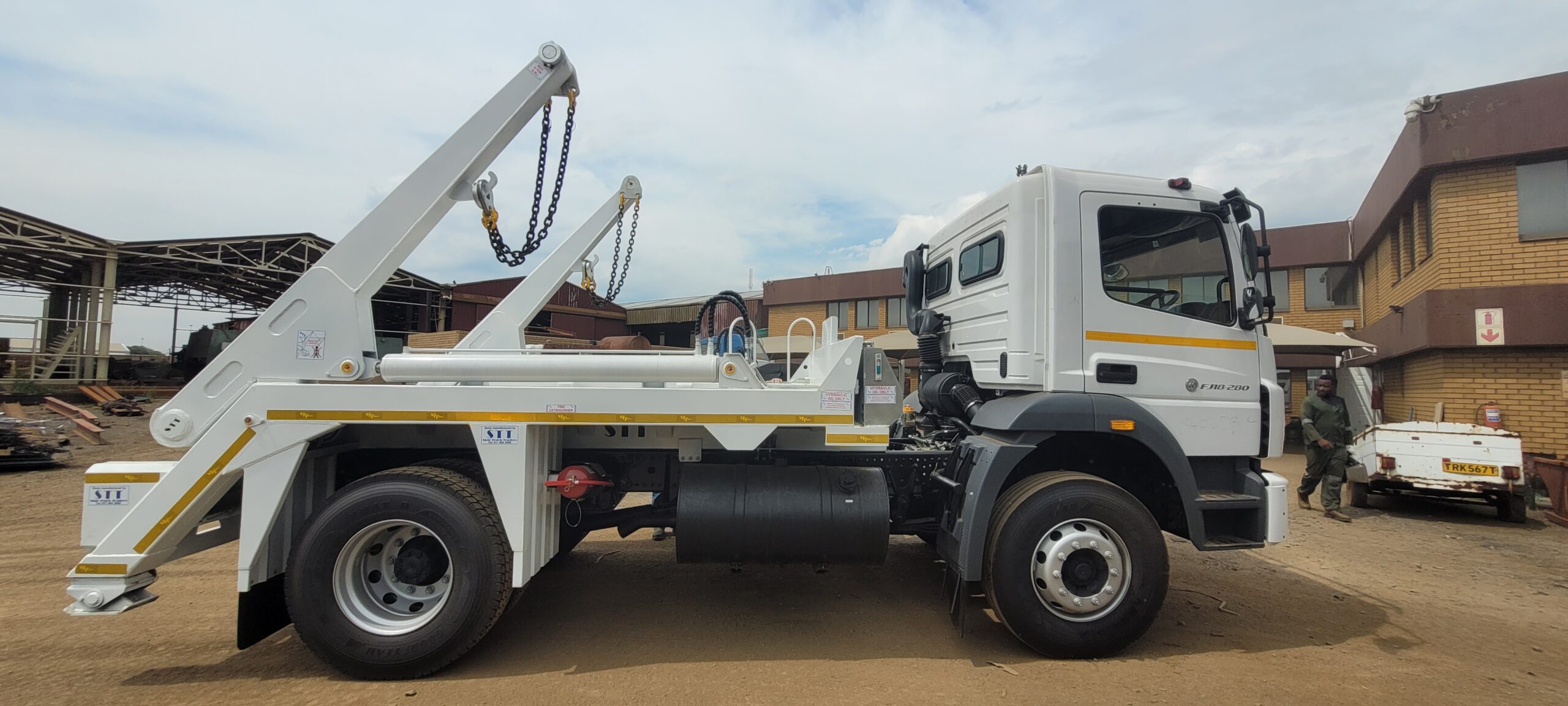

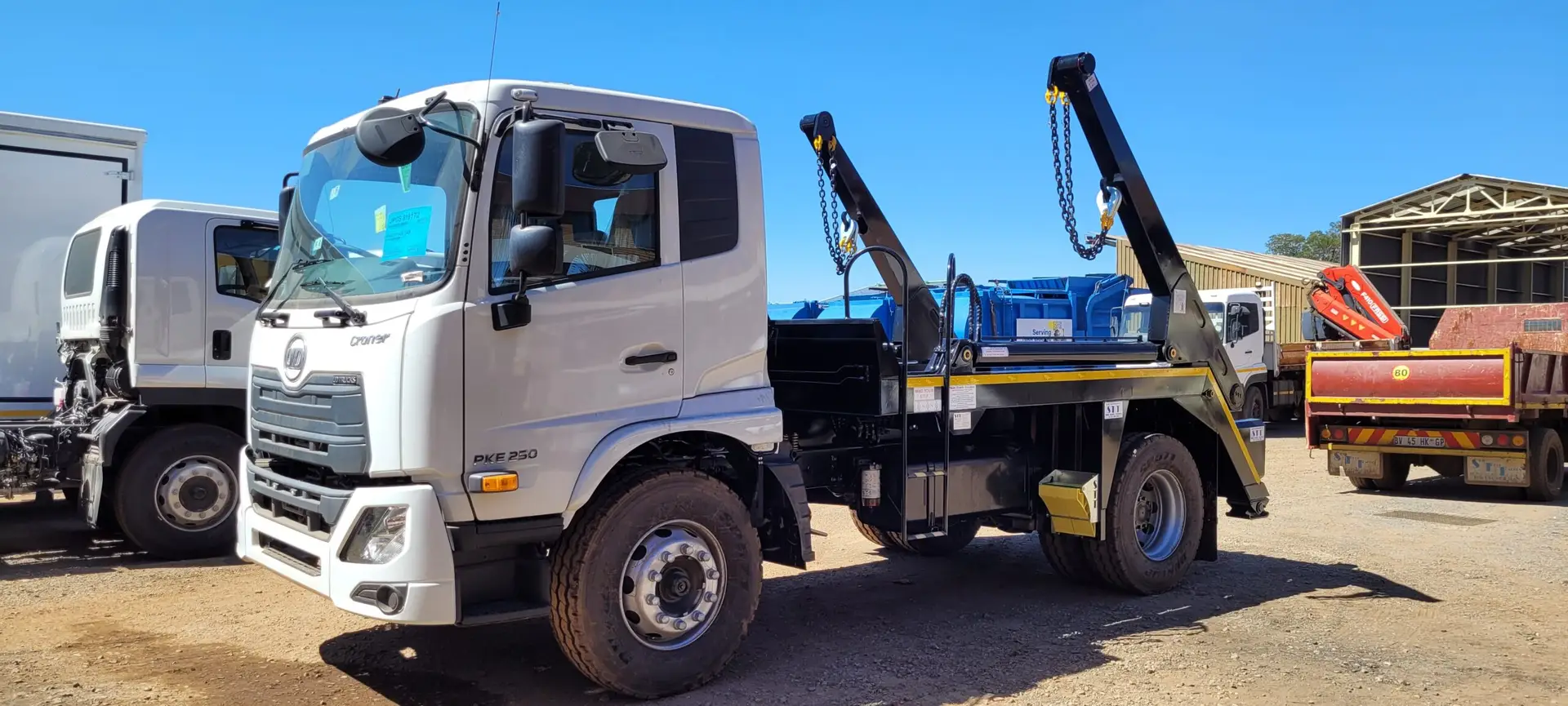

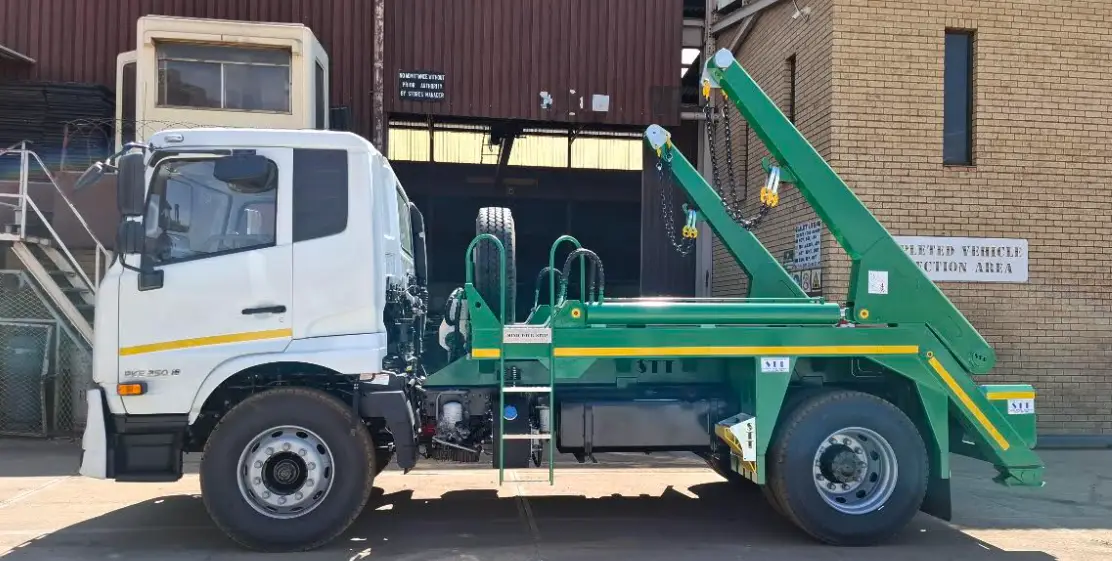

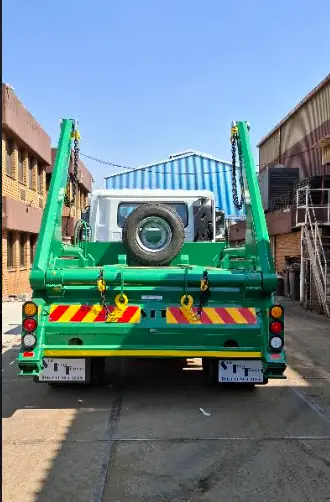

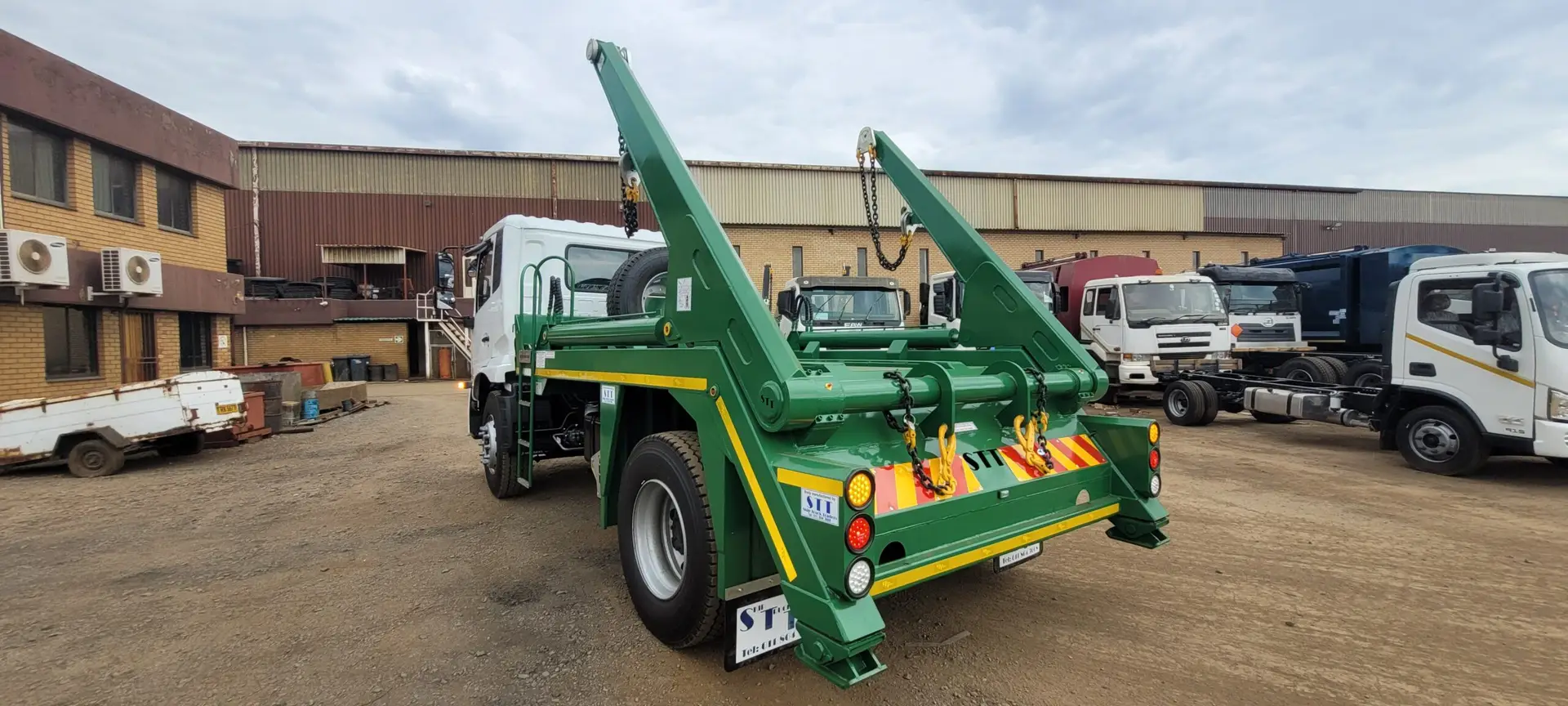

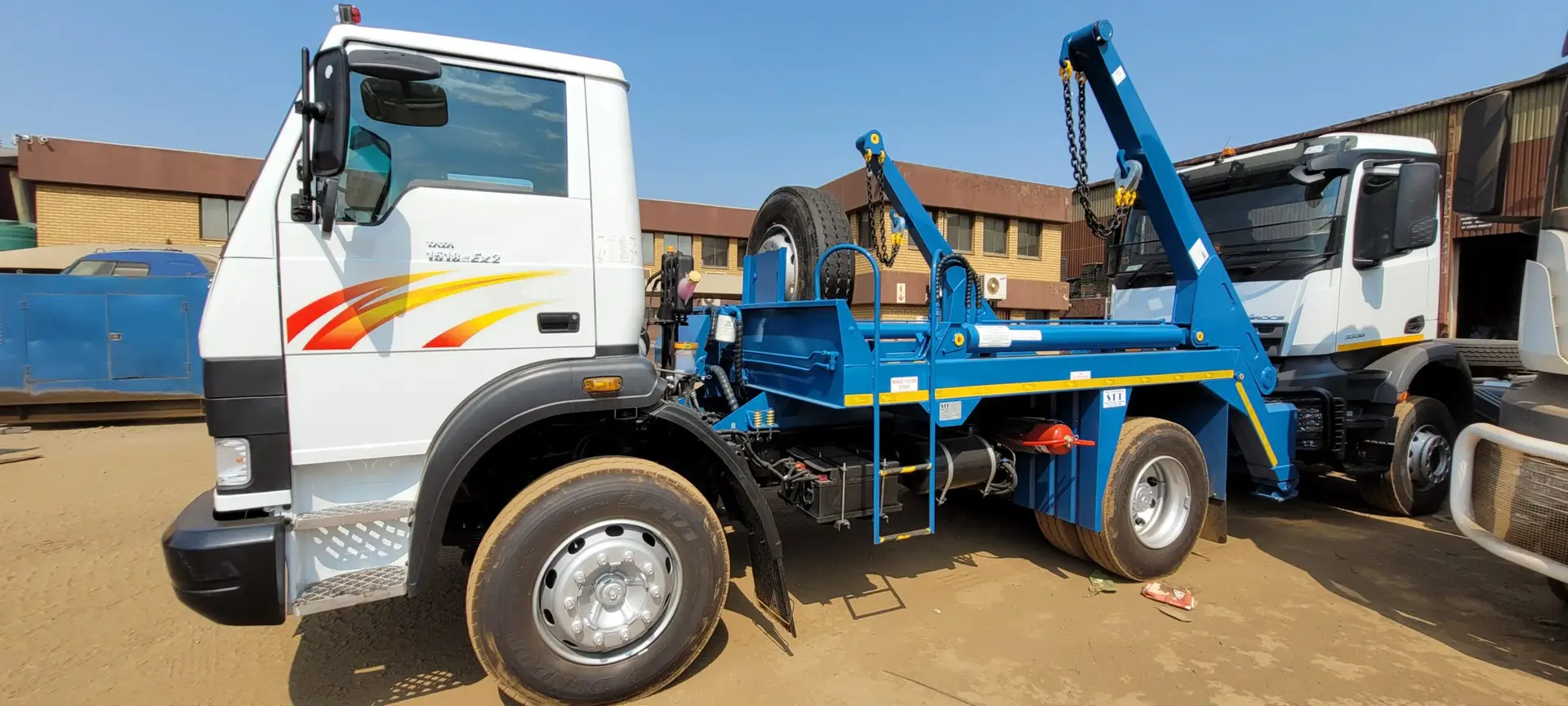

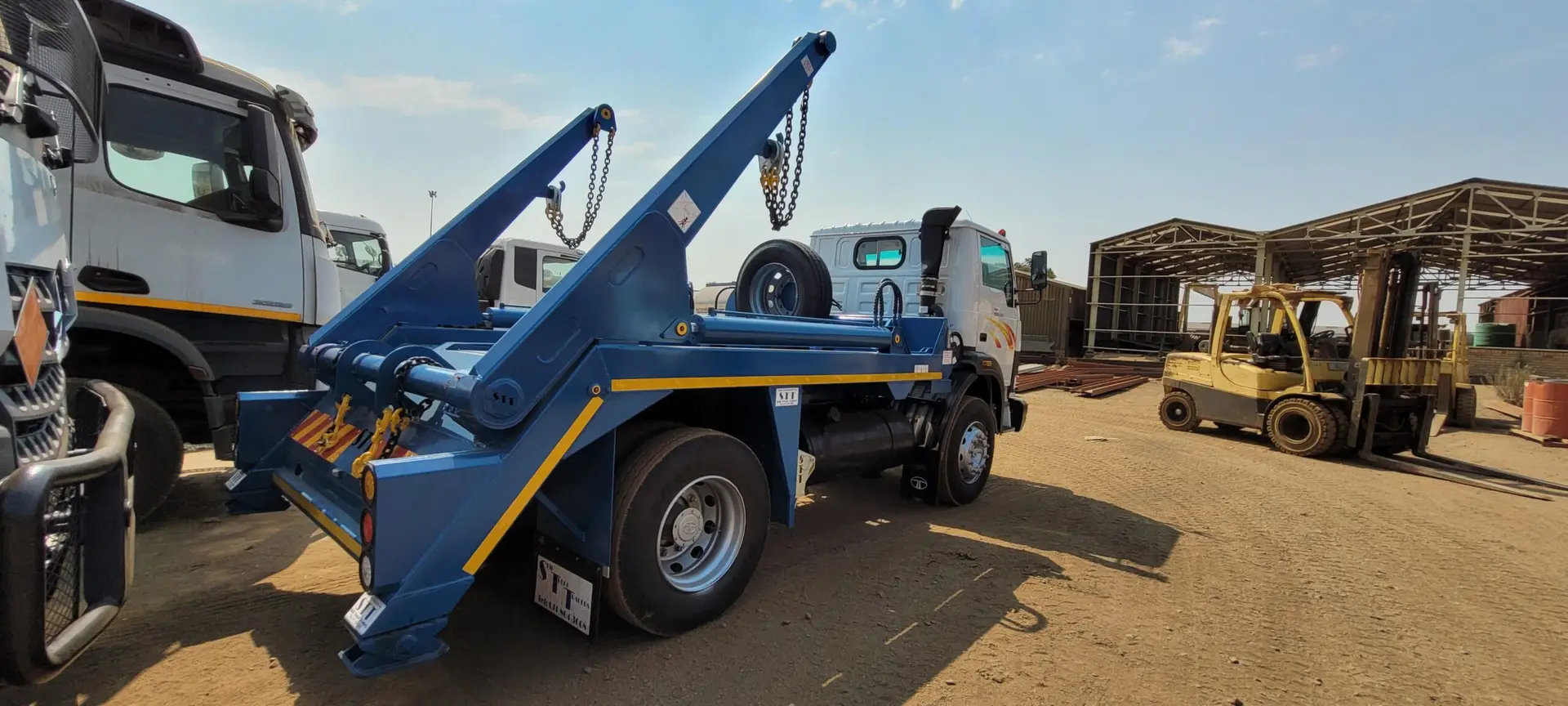

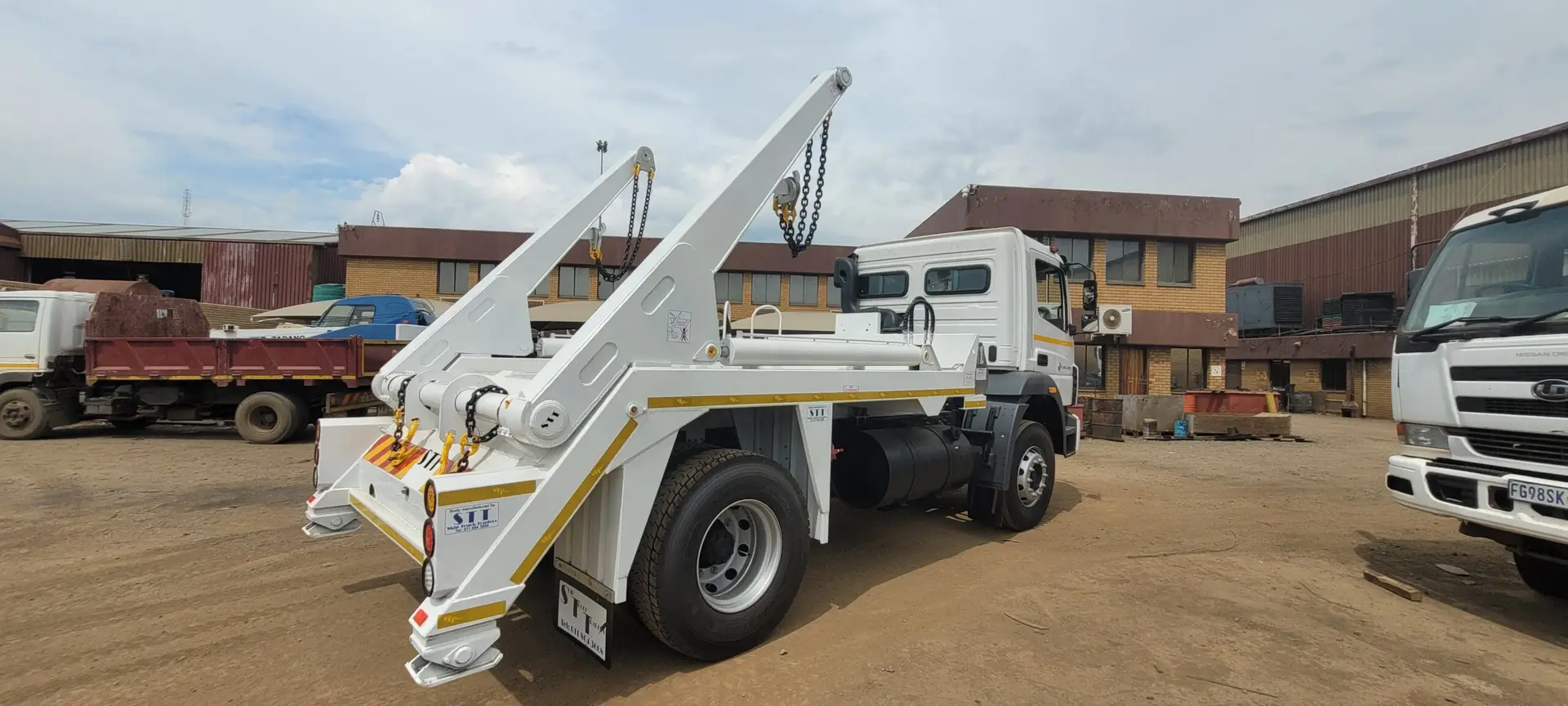

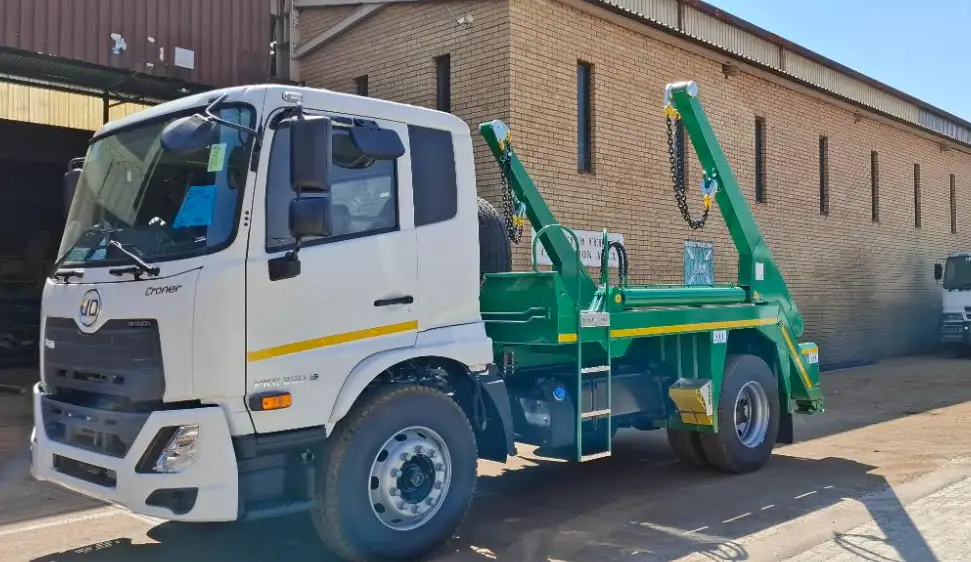

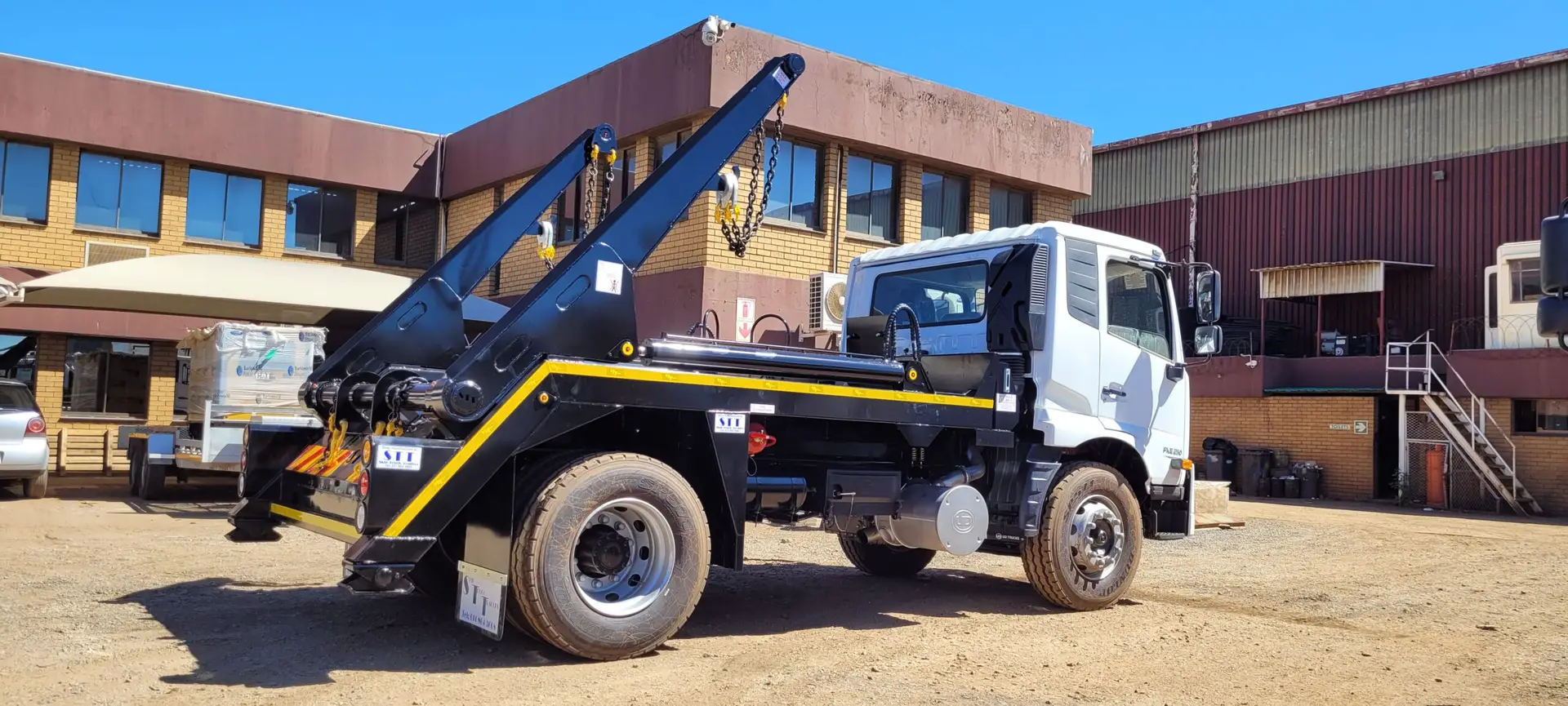

This body is primarily used for the transportation of skip bins for general waste including the collection of light duty scrap metal. This unit is priced very competitively as an entry level waste truck for the serious entrepreneur entering the waste industry. This unit remains a popular choice used by various municipalities for residential and light industrial collection. These units are completely manufactured locally so spare parts are readily available on request.
| OPTION | 9 Ton Skip Unit |
| Height From Ground | 3500mm |
| Width | 2600mm |
| Required CA Dimension | 2900mm |
| Tare Weight | 2000kg |
| OPTION | 9 Ton Skip Unit |
| Side Beams | 4mm Supraform 700 |
| Deck | 4.5mm Mild Steel |
| Floor Cross Members | 4.5mm Mild Steel |
| Outrigger | 4mm Supraform |
| Arm Configuration | Standard |
| OPTION | 9 Ton Skip Unit |
| Hydraulic Pump Rating | 20 MPa |
| PTO Required Torque | 190Nm |
| Required Flow Rate | 60 – 80 L/min |
| Pump RPM | 1200 |
| Main Relief Pressure | 19 MPa |
| Hydraulic Tank Capacity | 70L |
